Educational Hydro Energy Power Plant Training Unit (EDC-HYD-30)

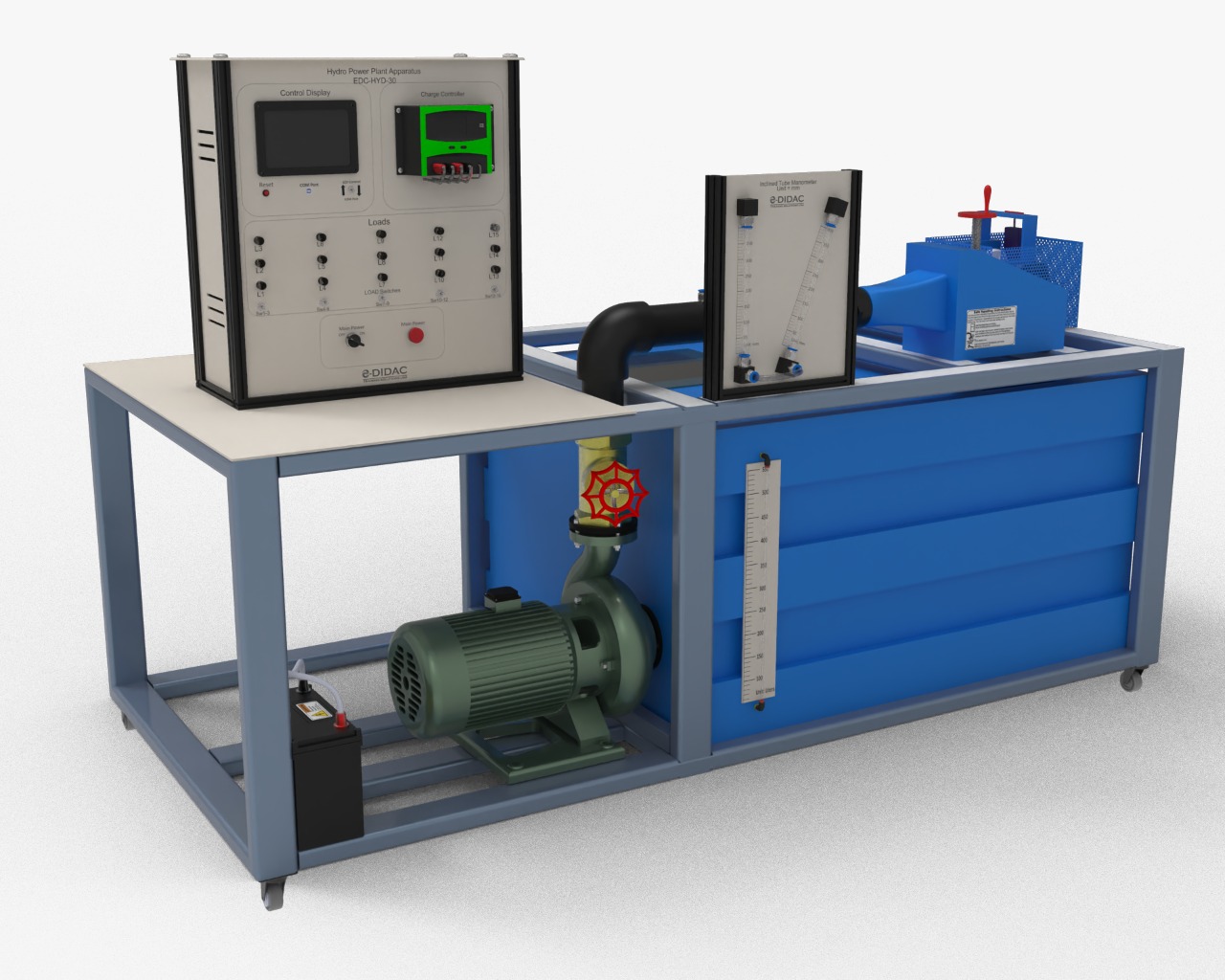

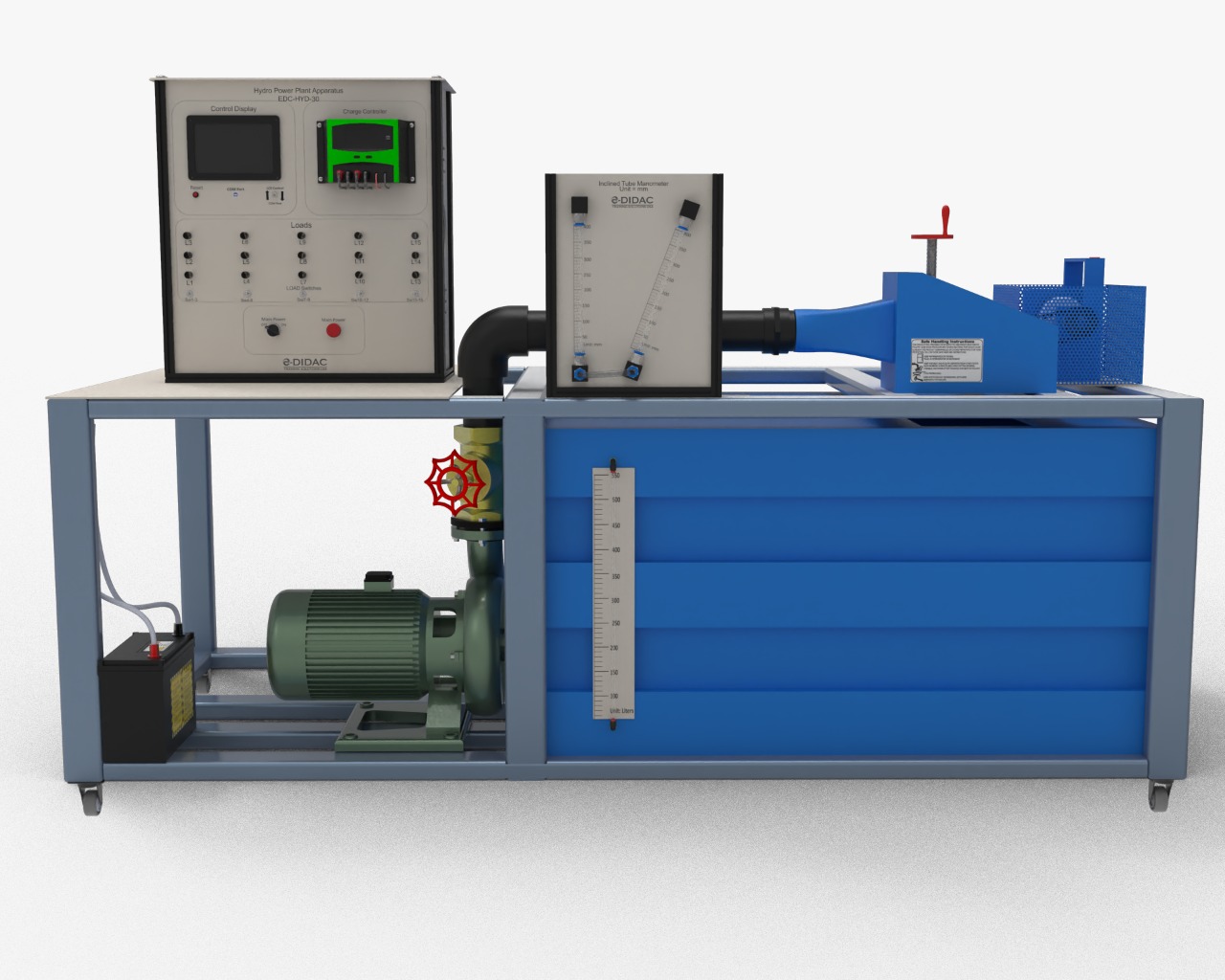

Water turbines are turbomachines utilizing water power. Such turbines convert the pressure energy of water into kinetic energy entirely in the distributor. During the conversion, the water jet is accelerated in a nozzle and directed onto the blades of the turbine wheel tangentially. The impulse of the water jet is transmitted to the turbine wheel. The unit consist of a storage tank and a water pump to simulate a dam reservoir, a Cross Flow turbine, a generator which is connected to the turbine, a lamp load bank a dynamometer, and measuring instrument. Pelton turbine has efficiency greater than Cross Flow, Kaplan and Francis.

Unit has

Standalone LCD with touch panel
Touch LCD will display the turbine rotor speed, generator output voltage and current, load control and other parameters on the process schematic diagram.

A PC data acquisition (EDSM-30S) is also available (Optional).

Specification

Data Not Found .......

Technical data

Turbine
Cross Flow type with 170mm dia stainless
Mechanical Power: 400W
Digital rpm sensor
Generator
Rating Max. output: 1hp (0.75kW)
Electrical Output Max: 300W
V oltage: 24VDC
Digital Sensor: voltage, current and rpm
Spring balance for Torque measurement
Water Pumps
Power: 2.2kW
Max Flow: 500lpm
Over current protection
Solid State ON/OFF control
Flow control valve
Pressure Gauge
Digital sensor: flow, pressure
Dynamometer: Mechanical (water cooled)
Load Unit
Resistive Load Unit
Digital display of voltage, current and power
Current and Voltage sensor
Switches for Load control
Self-contained HMI software with Touch LCD.

This LCD controls the functions of the equipment. It also displays the data of the sensors installed in the equipment. This eliminates the need of expensive PC to interface with the equipment.

A PC data acquisition (EDSM-30S) is also available (Optional).

Dimensions and weight

LxWxH:1500 x 1200 x 1500 Weight:140kg

Determination of the operative characteristics of a Cross Flow Turbine.
Flow calculation.
Turbine torque vs speed at various heads and flow rates.
Mechanical power output vs speed for various heads and flow rates.
Mechanical efficiency vs speed for a given head and flow rate.
Electrical power output at various heads and flow rates.
Overall power plant efficiency at various electrical loads.
Energy consumption with isolated loads.
Calculation of hydroelectric power plant efficiency.

1 x EDC-HYD-30
1 x Instructional Manual
