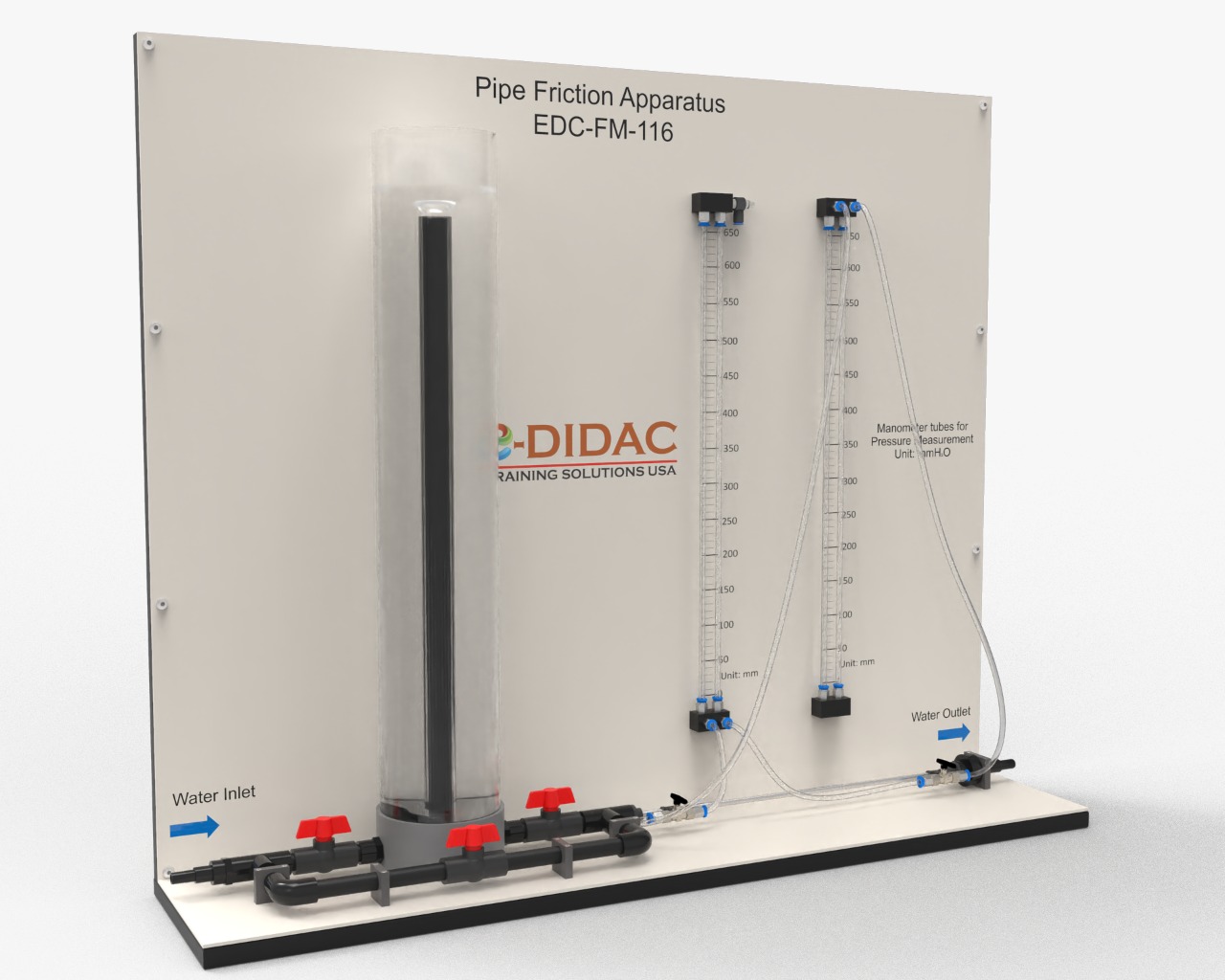

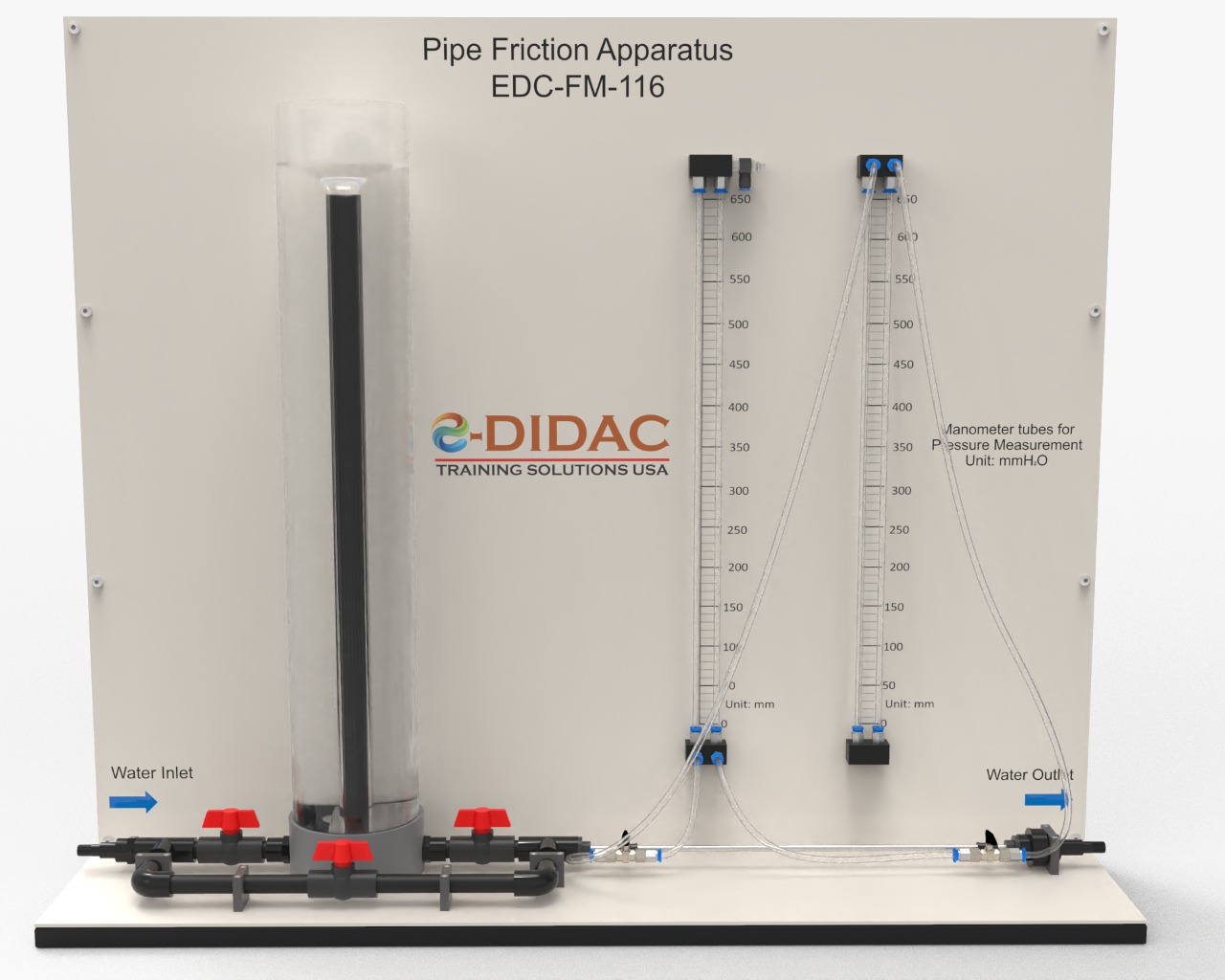

Pipe FriclatimoninAarpfplaorwaturesgailolnows students to study the change in the laws of resistance for laminar to turbulent flow and find the critical Reynolds number. This Unit enables the study of the relationship between pressure
loss due to fluid friction and velocity in the pipe flow. Additionally, the pipe friction factor is determined. This unit includes a small diameter pipe section in which the laminar and turbulent flow is generated. The Reynolds number and the pipe friction factor are determined from the flow rate and pressure loss. In turbulent flow, the pipe is supplied directly from the water supply. The constant pressure at the water supply required for laminar flow is provided by a standpipe on the overflow. Valves can be used to adjust the flow rate. The pressures in laminar and turbulent flow are measured with twin tube manometers.
This unit can be operated by Laboratory supply or with Hydraulic Bench (EDC-FM-100).
Specification
Data Not Found .......
Technical data
• Pipe section:
• Material: S.S
• Length: 500mm.
• Inside diameter: 3mm.
• Tank:
• Transparent PMMA
• Approx. 3L. • Manometers:
• Differential pressure: 2x 500mmWC
Dimensions and weight
LxWxH:800 x 650 x 900
Weight:21 kg
