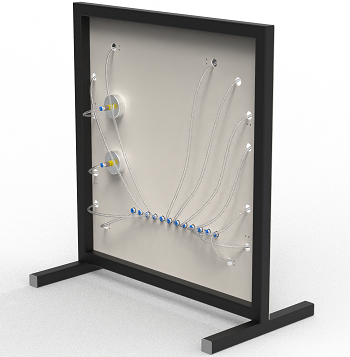

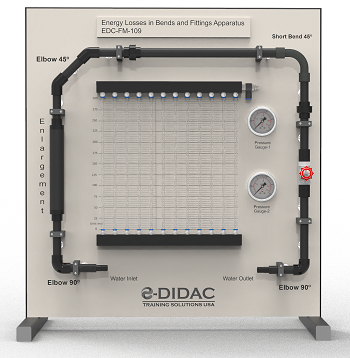

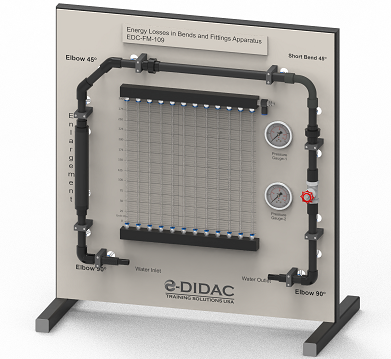

This experimental unit consists of a pipe section containing different segment fittings along the loop as well as sudden enlargement and contraction elements. All of the elements and fittings are connected to the manometer manifold while clear piping to visualize pressure differential.

This unit can be used with EDC-FM-100 or can also be used with laboratory water supply. The on-board flow control valve allows students to observe the pressure losses at different flow rates.
