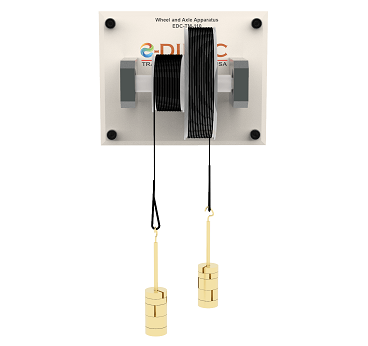

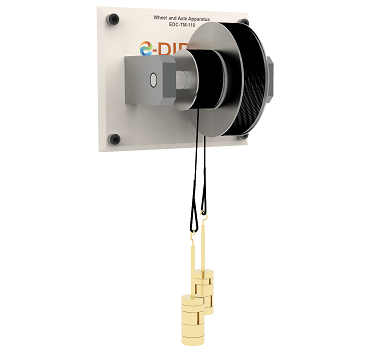

The EDC-TM-110 is a wall-mounted apparatus with wheels of two different diameters wheel and has an axle supported on simple pivots in a sturdy wall mounting bracket. Each wheel has a cord wrapped around its perimeter. The cords can be wrapped in either direction around each wheel. A Load hanger can be hanged with each cord allowing application of load and effort on the wheels using the calibrated weights set provided.
Specification
- RELATED LAWS:
- Velocity Ratio
- Mechanical Advantage
- Effort
- Effort of Friction
- Efficiency
- Simple Machines
Technical data
- Large wheel diameter: Ø150mm
- Small Wheel diameter: Ø75mm
- Recommended Max Load: 100N
Dimensions and weight
LxWxH:250 x 150 x 250
Weight:15kg
