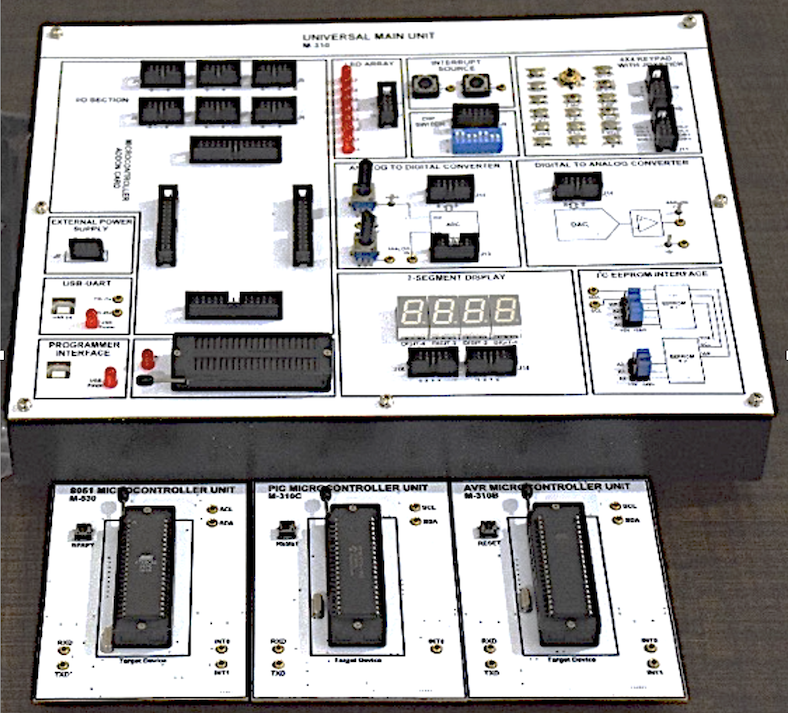

This system is a universal Microcontroller Training System. This contains stand-alone peripheral devices like Graphical LCD, Keypad, DC Motor, Stepper Motor, etc. Trainer main board contains all some basic peripheral devices. Universal device programmer is provided with device mounting option. User can perform experiments on major microcontroller families namely AVR, PIC and 8051.
Specification
- MAIN BOARD:
- 8-BIT A/D CONVERTER
- 8-BIT D/A CONVERTER
- FOUR 7-SEGMENT DISPLAYS
- 8X MONITOR LEDS
- 2X I2C EEPROM INTERFACE
- 4X4 MATRIX KEYPAD WITH 5-WAY JOYSTICK
- 2X INTERRUPT SOURCE
- 8-BIT DIP SWITCHES
- SERIAL PORT INTERFACE
- USB PROGRAMMER FOR AVR, PIC AND 8051 DEVICES
- INTERFACE CONNECTOR FOR PLUG-IN BOARD (AVR/PIC/8051)
Technical data
EXTERNAL I/O INTERFACE
MODULE (OPTIONAL):
128X64 Graphical LCD
16X4 Character LCD
8X8 Dot Matrix LED
DC Motor having optical encoder, direction control & PWM control
Stepper motor with drive circuit
R/C Servo motor with drive circuit
Ultrasonic
IR and PIR Module
Temperature, Humidity and Light Sensor Module with Relay
8-Channel Relay Module
Dimensions and weight
LxWxH:350 x 350 x 100
Weight:2.5kg
