Pitot Tube Demonstrator Apparatus (EDC-FM-103)

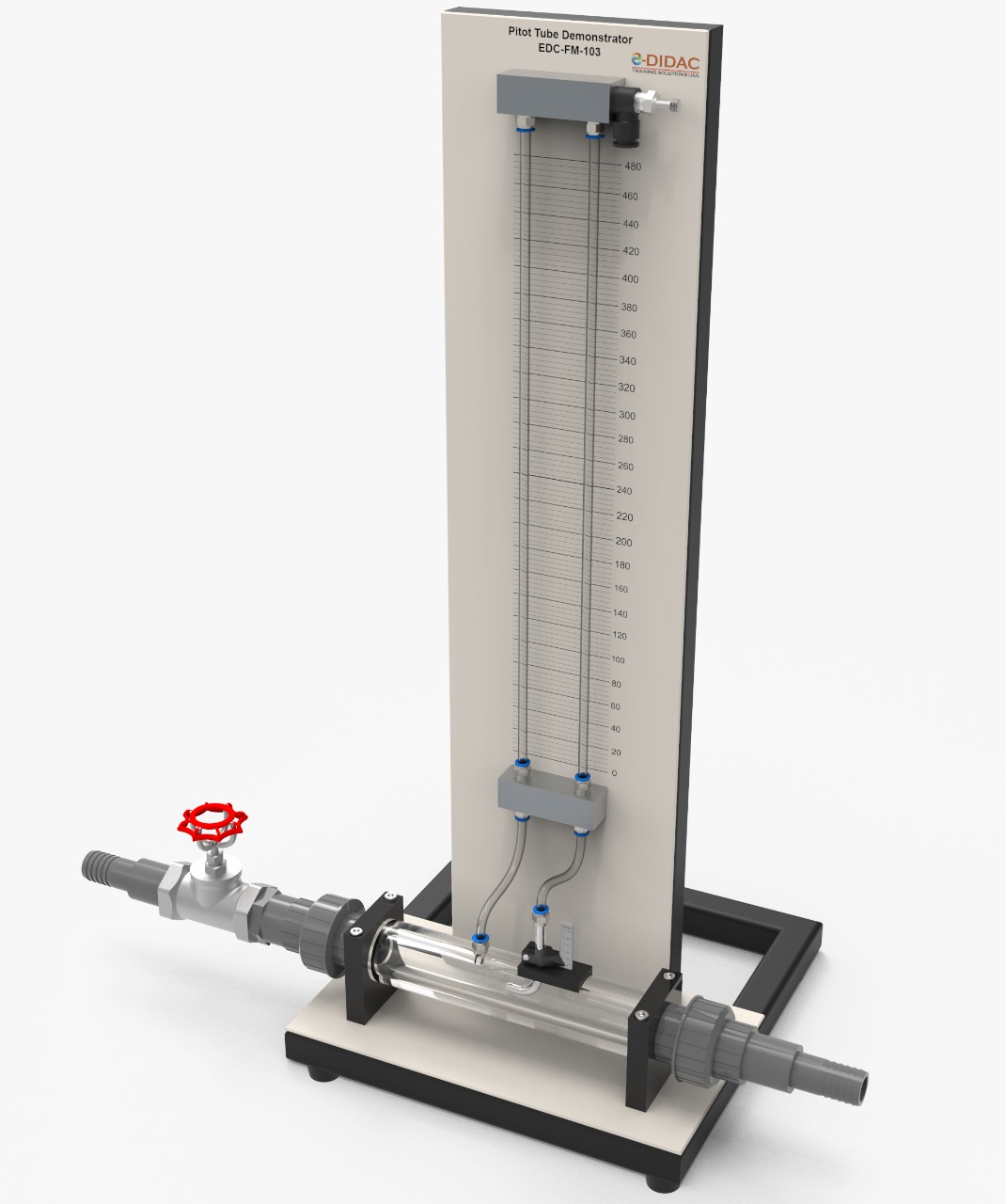

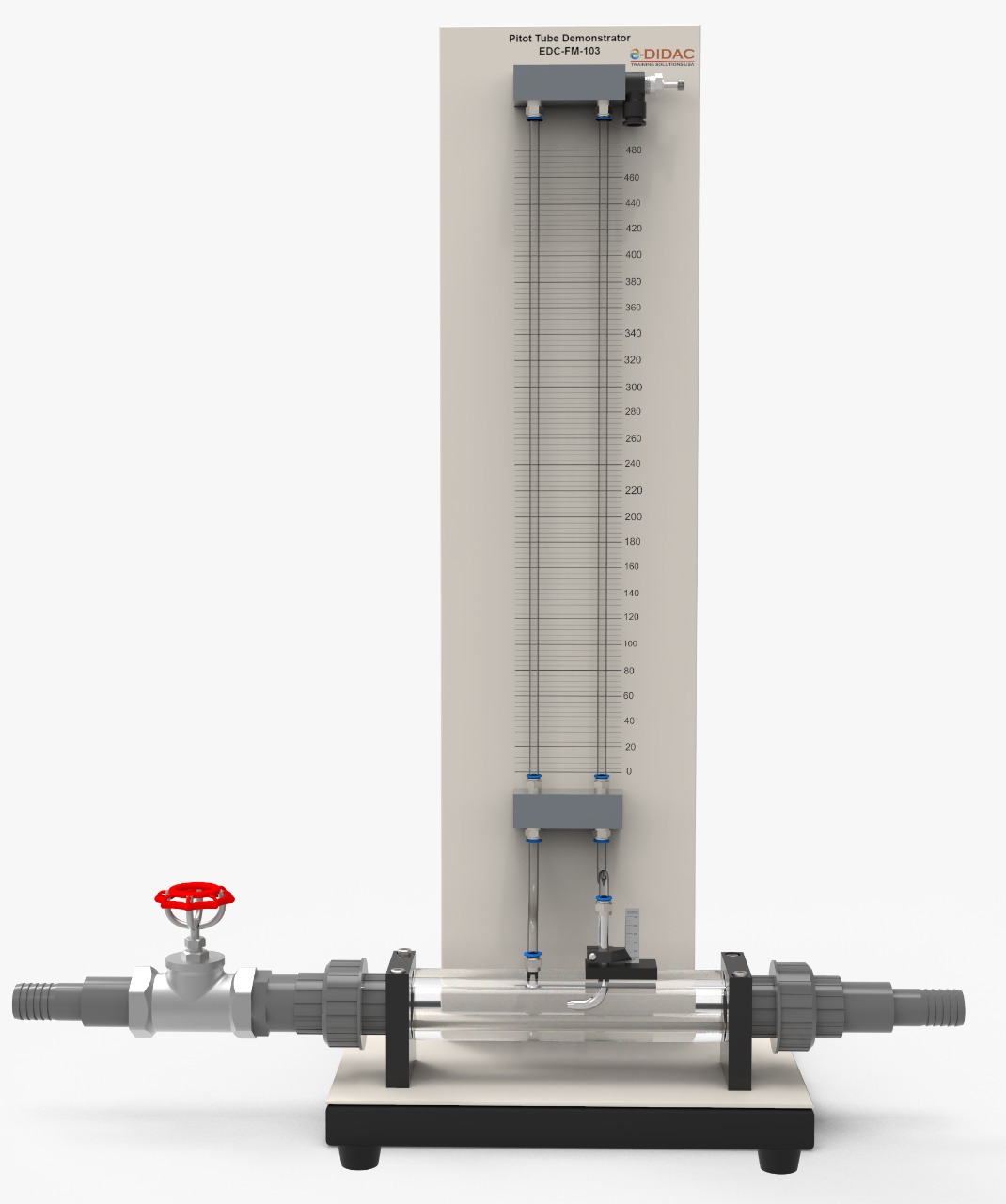

This attachment consists of an acrylic pipe with a pitot tube installed in the middle. Water manometer installed right above the pitot tube measures the pressure differential.

A gate valve is installed to observe the change in flowrate of water running through the system

Specification

Data Not Found .......

Technical data

Water Manometer Height: 500m
Acrylic tube to facilitate visualization
Gate Valve to control the flow

Dimensions and weight

LxWxH:350 x 330 x 650 Weight:12 kg

Operation of Pitot tube and water manometer
Velocity flow profile in a pipe
Demonstration that the fluid velocity is proportional to the square root of the head difference between the total head and the static head
Display of pressure difference on manometer.

1 x EDC-FM-103
1 x Instructional Manual
