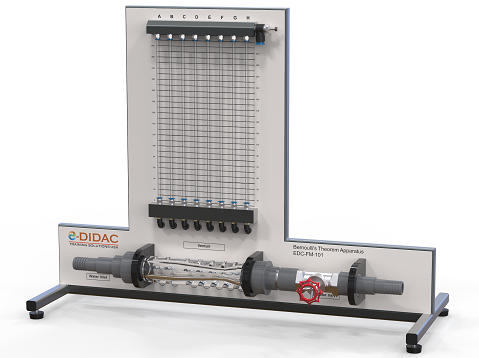

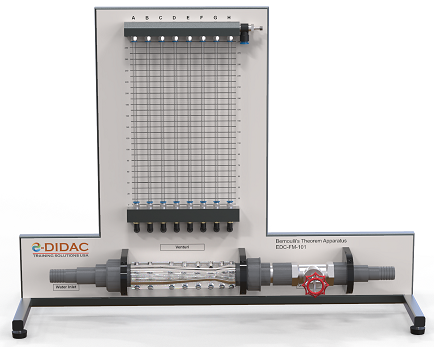

This experimental unit consists of a pipe section containing a venture tube and a flow control valve downstream. Used to study Bernoulli’s principle which describes the relationship between the flow velocity of a fluid and its pressure. All pressure tapings connect to manometers held on a vertical panel behind the pipe work. The manometers measure and show pressure distribution against a calibrated scale. To perform experiments, students connect the water supply and set a low, steady flow through the apparatus.

This unit can be used with EDC-FM-100 or can also be used with laboratory water supply. The on-board flow control valve allows students to observe the pressure losses at different flow rates.

To adjust the datum water level in the manometer tubes, students connect a hand-pump (included) to the valve above the manometer tubes.
