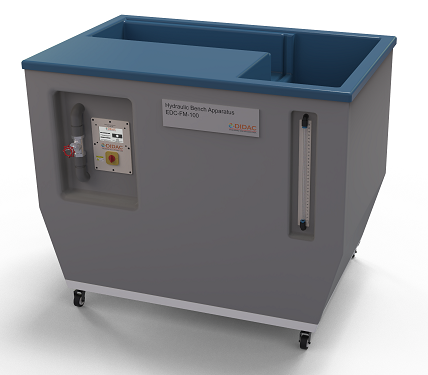

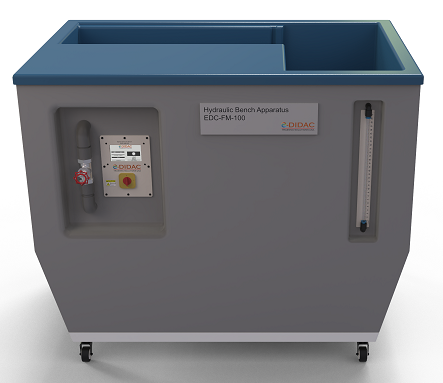

This EDIDAC product used in Fluid Mechanics Lab and Water supply related laboratories to supply controlled flow of water to a wide variety of laboratory experiment modules and apparatuses (available separately). This Bench has a large base tank to supply water to the modules and the closed water circuit consists of the underlying storage tank with a powerful water pump and the measuring tank arranged above, in which the returning water is collected. The Main Frame of this Hydraulic Bench is made of stainless steel and corrasion proof material. Both upper and lower tubs are made of fiberglass. It has a hand-operated water control valve adjusts the water flow rate from the pump. An electrical box on the side of the bench includes the electronic pump switch, circuit protection and a rotameter or digital LCD display of flow rate.

EDIDAC’s Fluid Mechanics Software (SEFM-01) is available as optional manual data entry learning package. This Software has tool for displaying and processing the results after taking data manually from the user. It also includes manuals for all modules.

The unit is mounted on lockable wheels for easy movement. For checking water level inside tank, a sight gauge is also installed.
