Gear Train Apparatus (EDC-TM-105)

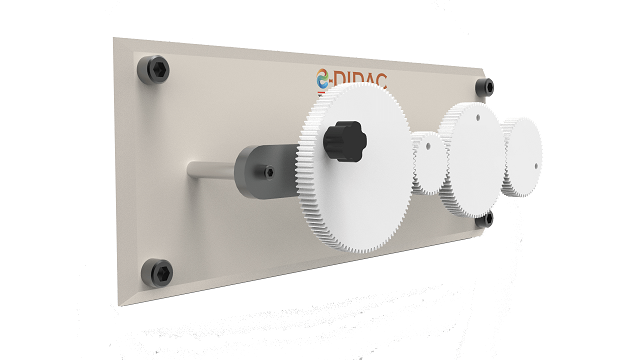

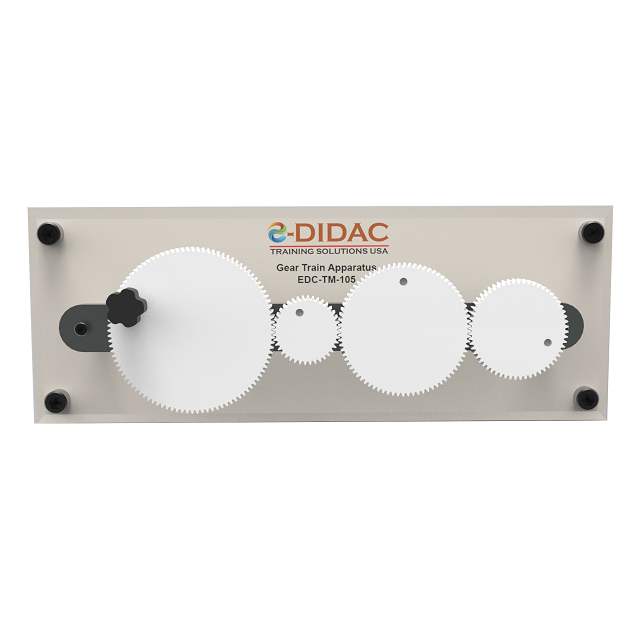

This wall mounted apparatus is used to demonstrate the fundamentals of gear drives. Spur gears of module 1 with 40, 60, 80 and 100 teeth are provided.

The bar which mounts the gear have holes spaced 10mm which allow the user to make any combination of gear train.

Each gear is provided with a threaded hole to fit the driving knob. This allows any gear to be the driving gear in the gear train.

Specification

Data Not Found .......

Technical data

Spur Gears: 40, 60, 80, 100 teeth
Module 1

Dimensions and weight

LxWxH:500 x 200 x 150 Weight:3kg

To show that for a single spur gear train, the ratio of the speeds of the driver and driven wheels are inversely proportional to the ratio of the number of teeth
To verify that intermediate gears have no effect on the velocity ratio
To establish the sense of rotation of a gear train with one or more intermediate wheels
To verify that for a compound gear train the velocity ratio depends on the ratio of teeth on the intermediate wheel.

1 x EDC-TM-105 Assembly
4 x Spur Gears
3 x Gear Knobs
Instruction manual
