Crank and Connecting Rod Apparatus (EDC-TM-103)

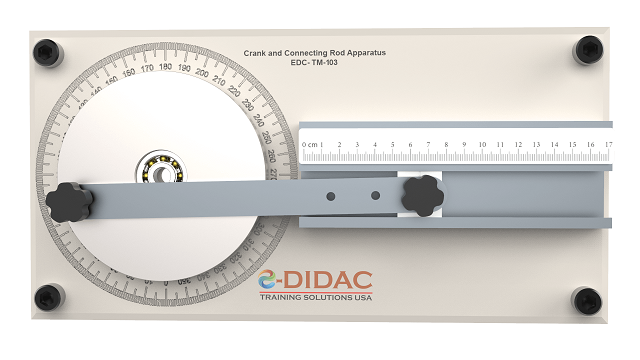

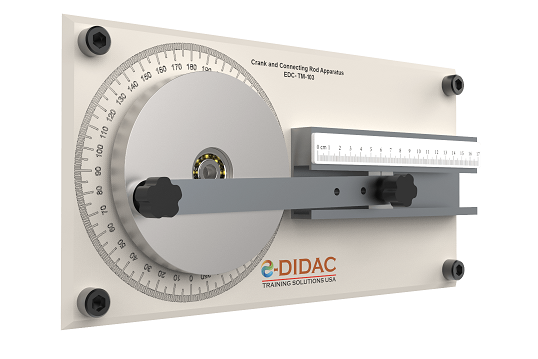

This apparatus comprises of a sturdy wall mount plate on which a rotating crank is mounted along with a connecting rod which converts its motion to oscillatory motion. Angular motion of the crank can be measured with the help of attached protractor.

An input disc houses a crank pin, which can be fixed at various radii across the input disc face.

A linear scale is also attached with the slider to measure the stroke of the slider.

Specification

Data Not Found .......

Technical data

Crank Pin Radii: 25, 37.5, 50mm
Connecting Rod Length: 145mm, 170mm, 195mm

Dimensions and weight

LxWxH:400 x 200 x 150 Weight:8kgs

To determine
The relationship between crank angle and stroke
The effect of varying the crank radius
To study the effect of changing the connecting rod length
To investigate the relationship between angular and linear speeds and accelerations of the mechanism
To draw velocity and acceleration diagrams for the mechanism
Comparison of experimental results with theoretical predictions

1 x EDC-TM-103
1 x Instructional Manual
