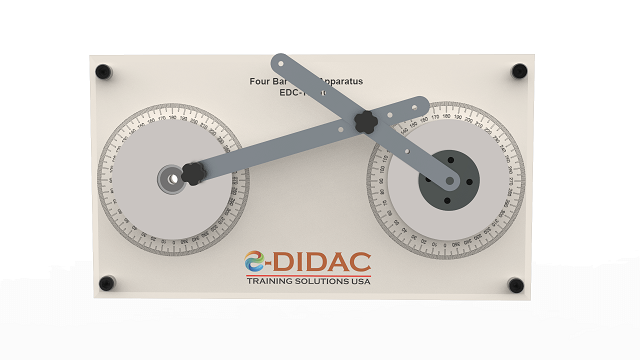

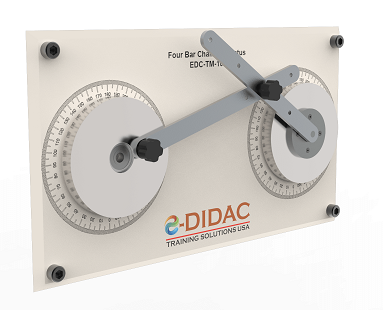

Four Bar Chain Apparatus (EDC-TM-101)





  • To demonstrate Grashof law.
  • Investigation of the mechanical relationships on four bar chain mechanisms
  • Determining the effect of varying the crank radius, rocker radius and connecting rod length.
  • 1 x EDC-TM-101
  • 1 x Instructional Manual
RELATED LAWS: • Linear Motion to Rotation • Simple Machines • Connecting Rods • Crank, piston, flywheel • Combustion Engine • Automotive RELATED LAWS: • Linear Motion to Rotation • Simple Machines • Connecting Rods • Crank, piston, flywheel • Combustion Engine • Automotive
