Asymmetric digital subscriber line is a type of digital subscriber line technology, a data communications technology that enables faster data transmission over copper telephone lines than a conventional voiceband modem can provide. ADSL differs from the less common symmetric digital subscriber line.

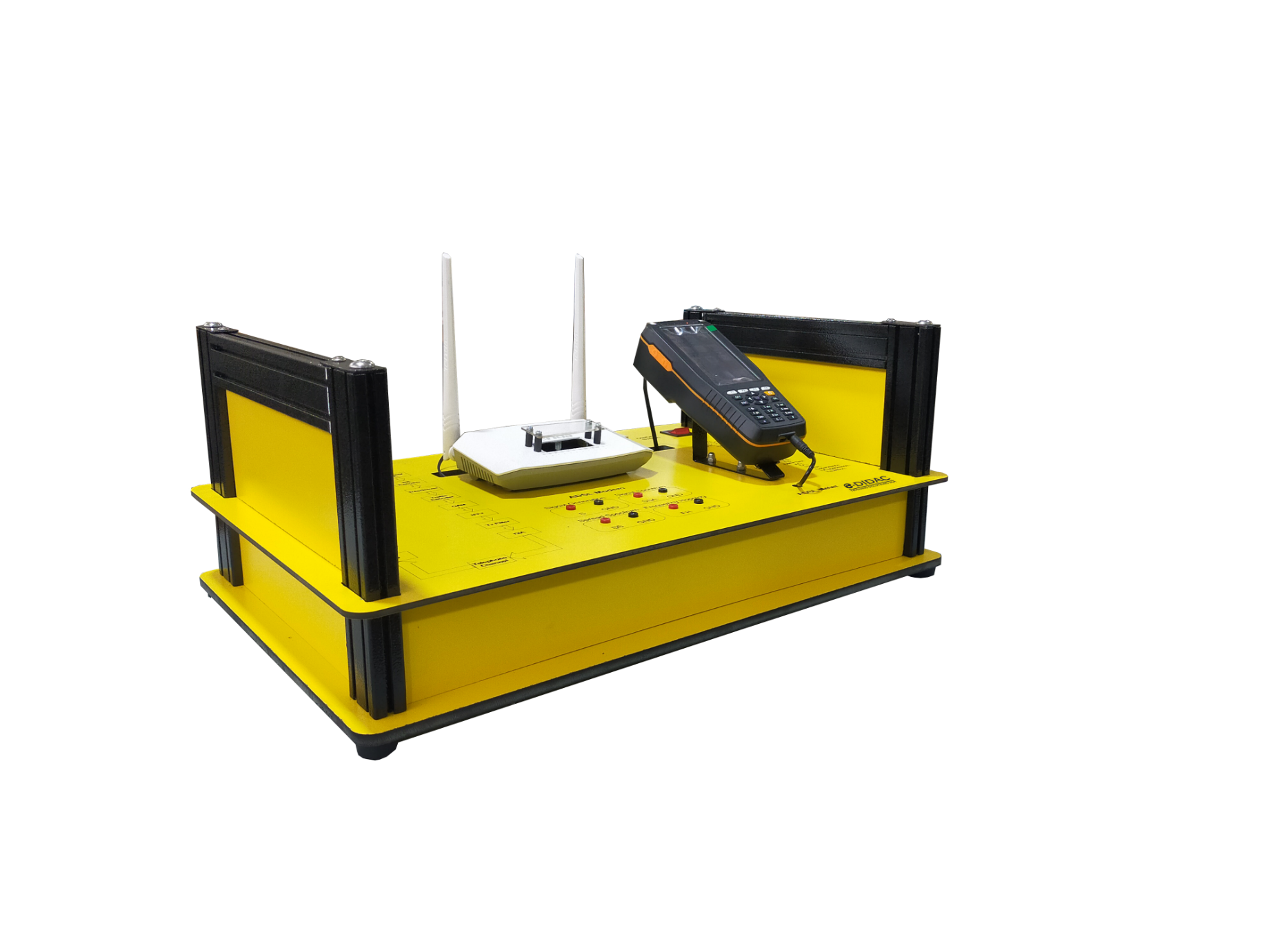

The apparatus contains a self-based mode to study the ADSL signals. It is a bench top apparatus contains all the necessary equipment to test the signals of ADSL.
Specification
• Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance).
• Supports Modem emulation and simulating login to Internet.
• Supports ISP login (username / password) and IP Ping test (WAN PING Test, LAN PING Test).
• Supports all multi-protocol, PPPoE / PPPoA (LLC or VC-MUX).
• Connects to CO via alligator clip or RJ11.
• Rechargeable Li-ion Battery.
• Beep and LEDs alarm indications (Lower Power, PPP, LAN, xDSL).
• Data memory function.
• LCD display, Menu operation.
• Compliant with all known DSLAMs.
• Software management.
• Simulation Software (optional).
• Power 220V 50 Hz AC.
Technical data
• DSL Physical layer test.
• Modem Emulation (Replace the user Modem completely).
• PPPoE Dialing (RFC1683, RFC2684, RFC2516).
• PPPoA Dialing (RFC2364).
• Telephone Function.
• DMM Test.
• Ping Function (WAN & LAN).
• Data upload to computer and software management.
• Setup system parameter: backlight time, shut off automatically time without operation, press tone.
• Revise PPPoE / PPPoA dial attribute, user name and password; restore factory value and so on.
Dimensions and weight
LxWxH:500 X 400 X 300 approx.
Weight:15 kg approx.
