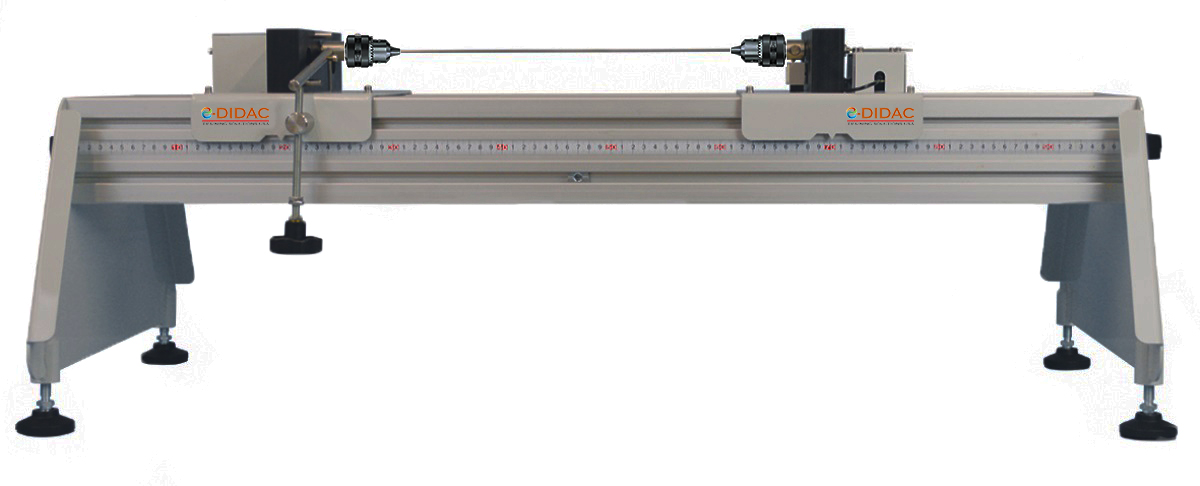

This torsion testing module allows users to analyze the torsional behavior of rods made from different materials. Adjustable chucks enable precise angular deflection, with a potentiometer measuring twist and a load cell recording torque. It includes three rods (solid and hollow) for comparing torsional resistance, shear modulus (G), and stiffness. The modular design lets users vary rod length to study its impact on torque and deflection. Integrated with EDAQ software, it provides real-time data acquisition and analysis via USB. The package includes essential accessories, making it ideal for engineering education and research.
Specification
• Fully adjustable chuck positions for an increased range of experiments.
• Includes a Vernier caliper for precise rod diameter measurement.
• Users can apply angular deflection using a chuck with a precision potentiometer to measure angular deflection.
• The other chuck connects to a load cell to measure the resulting torque
• Includes rods of different materials to compare shear modulus (modulus of rigidity, G).
• Includes a hollow rod to demonstrate the effect of missing material on torsional resistance.
• Allows variation of rod length to observe its effect on angular deflection.
• The potentiometer and load cell connect to the USB interface hub for computer display and data acquisition.
Technical data
Rod Specifications:
• Rod length: 700 mm.
• Nominal external diameter: 3 mm.
• Rod materials included:
o Brass (solid).
o Brass (hollow).
o Stainless steel (solid).
• Measurement & Load Application:
• Angular measurement range: 0 to 25 degrees.
• Torque measurement capacity: Up to 1 N/m.
• Two chuck assemblies:
o One with a precision potentiometer for angular measurement.
o One with a load cell for torque measurement.
• Software & Data Acquisition:
• Compatible with EDAQ software for real-time data logging and analysis.
• USB interface hub for data collection and display.
Dimensions and weight
LxWxH:
Weight:
