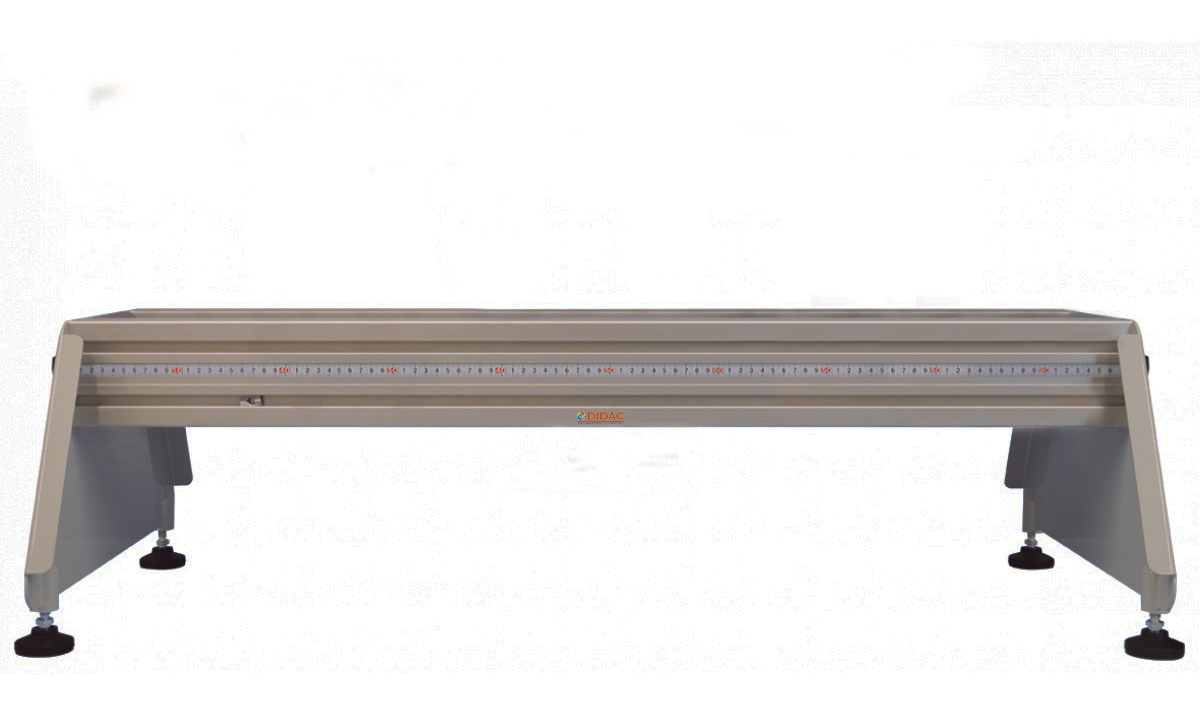

The Modular Experiment Platform is a compact and rigid setup designed to support Structures experiment modules in laboratory and educational environments. Made from precision-slotted aluminum extrusions and steel end plates, it ensures durability and stability. Adjustable feet and a low center of gravity provide accurate and repeatable results. Measuring scales enable precise component positioning, while lifting handles enhance mobility and storage convenience. A USB interface hub allows real-time data acquisition and analysis with user-friendly software for logging, exporting, and calculations. The system includes essential accessories like a hex tool, USB cable, AC adapter, and software package for a complete setup.
Specification
• Compact design with lifting handles for easy mobility
• Rigid design with adjustable feet for stability and accurate results
• Low center of gravity for added balance
• Made from precision-slotted aluminum extrusions and steel end plates for durability
• Includes measuring scales for easy and accurate positioning of parts
• Quick and simple experiment setup and change
• USB interface hub for connection to a suitable computer
• User-friendly simulation, display, and data acquisition software
• Data export in CSV format for use in spreadsheet and other software applications
• Manual or automatic data recording
• Data capture at set time intervals
• Real-time traces of analog signals
• Data logging for printing and later analysis
Technical data
Construction:
• Material: Precision-slotted aluminum extrusions and steel end plates
• Stability: Adjustable feet and low center of gravity
• Measurement Features:
• Built-in measuring scales
• Quick and simple experiment setup
• Connectivity & Software:
• USB interface hub for data acquisition
• Software for display, simulation, and data export
• Data export formats: CSV/XLSX
• Onboard EDAQ System:
• Manual/automatic data recording
• Settable data capture intervals
• Real-time analog signal tracking
• Data logging for analysis and printing
• User-defined real-time calculations
• Display options: Digital or analog meter format
Dimensions and weight
LxWxH:1062 x 420 x 295 mm
Weight:
