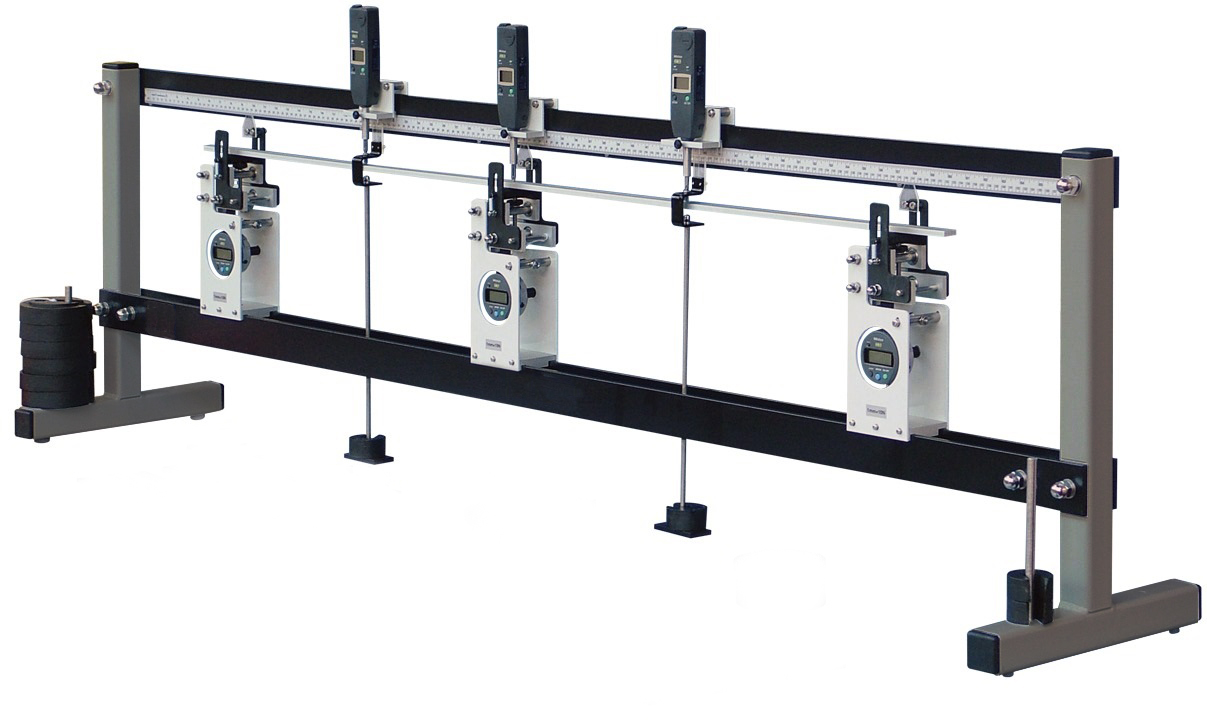

The Beam Apparatus is a bench-top testing unit for studying beam deflection and forces under various loading conditions. It supports different beam materials, thicknesses, and configurations to explore bending, flexural rigidity, and static equilibrium. Three load cells with digital readouts measure support reactions, while adjustable deflection indicators ensure precise measurements. The system accommodates simple, built-in, and sinking support configurations for comprehensive experiments. Supplied with 15 test beams in various materials and shapes, it offers diverse testing options. Fully compatible with the Versatile Data Acquisition System (EDAQ), it enables real-time data analysis for enhanced learning.
Specification
• Bench-top beam apparatus for studying deflection and forces in various beam types under different loads and supports.
• Capable of demonstrating Young's modulus and verifying the bending equation.
• Manufactured in compliance with the latest European Union directives.
• Allows a wide range of experiments related to beam bending, flexural rigidity, and static equilibrium.
• Multiple support configurations, including simple, built-in, and sinking supports.
• Three load cells with digital readouts and adjustable hardened steel knife edges for precision.
• Locking pins available to convert load cells into rigid supports.
• Cantilever support pillar with a strong clamping system for built-in end conditions.
• Includes four weight hangers and a set of weights for applying static loads.
Technical data
• Deflection Indicators:
• Digital indicators with sockets for connection to Versatile Data Acquisition System (EDAQ).
• Test Beams Included:
• Standard Test Beams (5 total):
• 3 Steel beams: 3.2 mm, 4.8 mm, and 6.4 mm thick.
• 1 Brass beam: 6.4 mm thick.
• 1 Aluminum beam: 6.4 mm thick.
• All beams are nominally 19 mm wide × 1350 mm long.
• Additional Test Beams (10 total):
• 4 Steel beams (including 1 tapered).
• 1 Brass beam.
• 1 Steel & brass compound beam.
• 2 Aluminum beams (1 with a channel cross-section).
• 1 Hardwood beam.
• 1 Aluminum & wood compound beam.
Dimensions and weight
LxWxH:
Weight:
