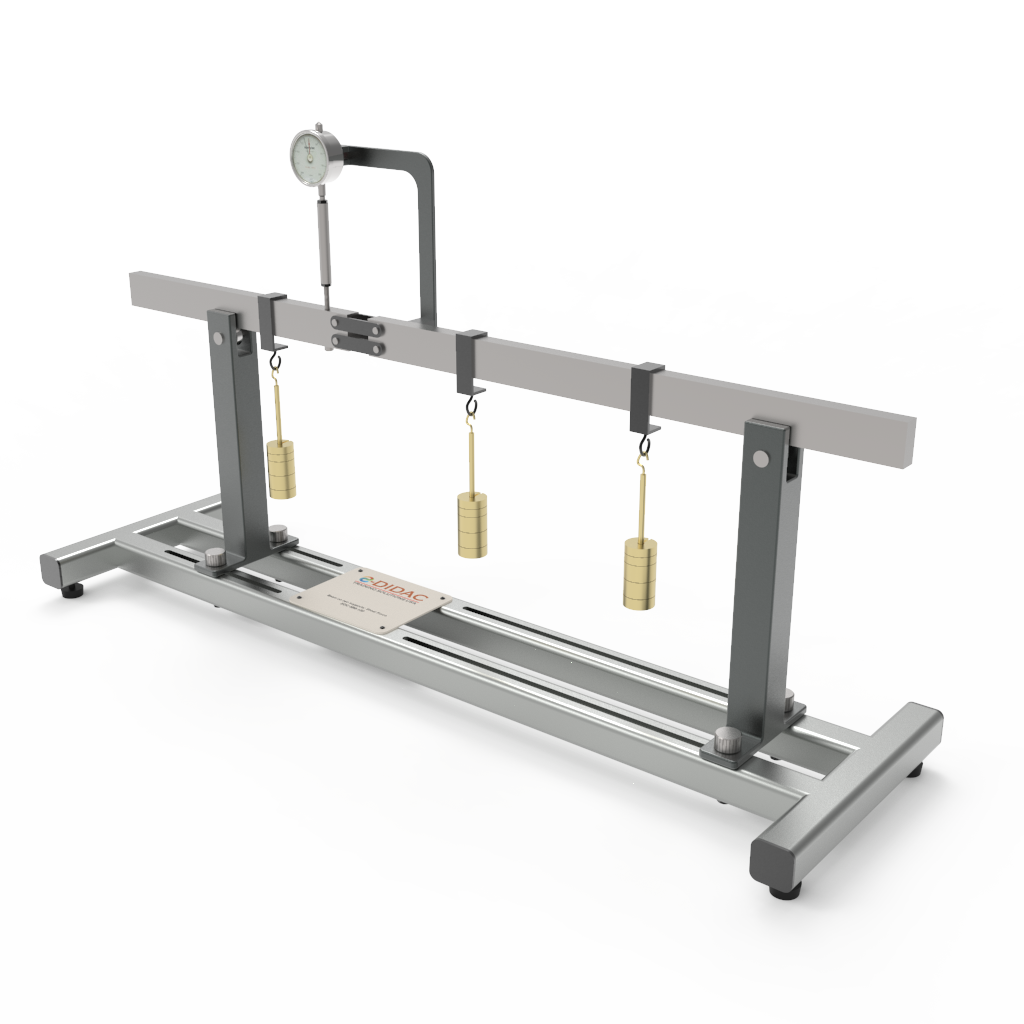

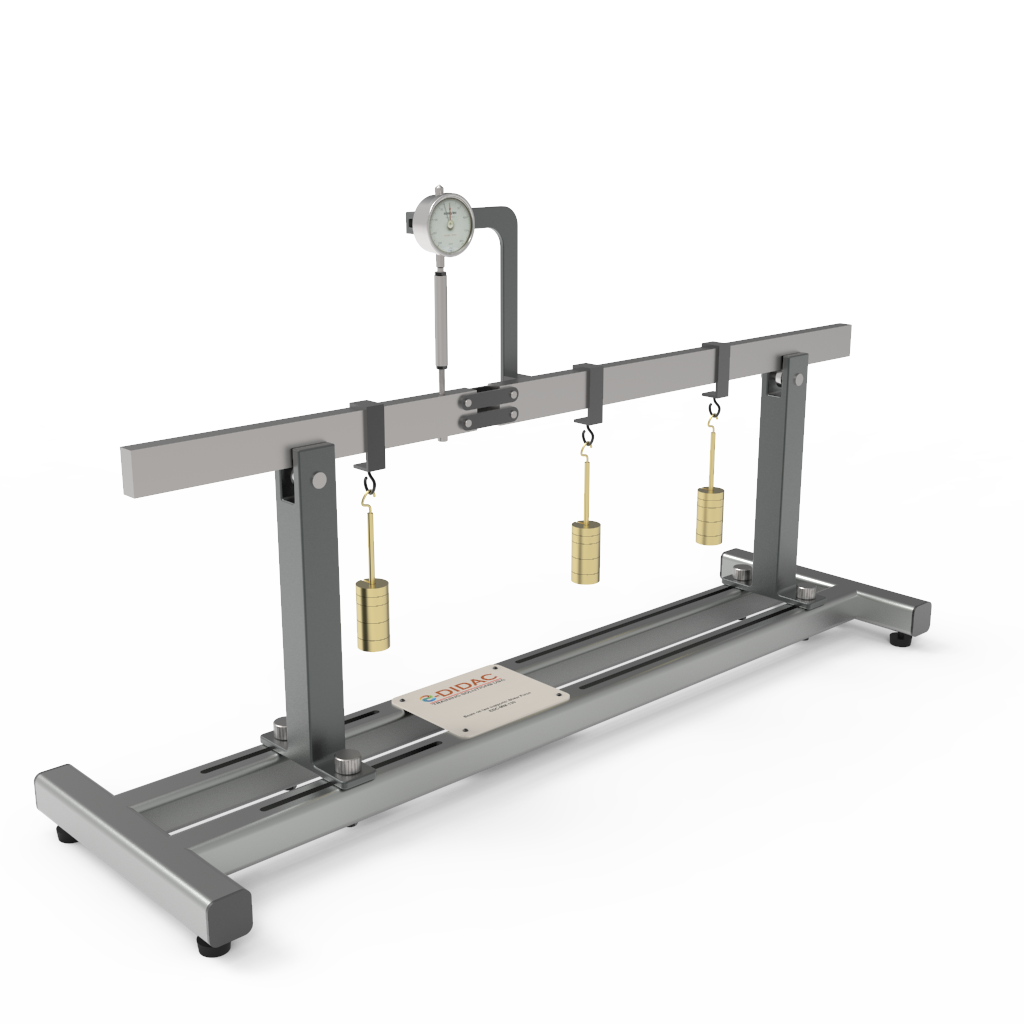

The Shear Force Investigation Apparatus provides hands-on learning in structural analysis by demonstrating shear forces in beams. It features a beam with a low-friction hinge at one point, allowing direct shear force measurement via a built-in gauge. An adjuster nut ensures the beam remains level, minimizing deflection effects. Students can apply up to three point loads to explore real-world shear force applications. The apparatus enables equilibrium calculations, shear force diagram generation, and comparison of measured vs. theoretical values. Compact and organized, it ensures easy setup and efficient storage.
Specification
• Beam mounted on two supports and subjected to point loads.
• Low-friction hinge at a cut section of the beam with one degree of freedom to measure shear force.
• Force gauge included to indicate internal shear force at the hinge.
• Adjuster nut for horizontal alignment of the beam and to balance out deflection.
• Supports up to three point loads for various experiment configurations.
• Storage system with foam inlay to house all components safely.
Technical data
• Beam & Measurement Specifications:
• Total beam length: Minimum 1100 mm.
• Effective span: Minimum 800 mm.
• Shear force measuring range: ±50N.
• Weights Included:
• Weight holder.
• 3 × 1N weights.
• 3 × 1N hangers.
• 12 × 1N weights.
• 9 × 5N weights.
• Maximum weight per hanger and holder: 20N.
Dimensions and weight
LxWxH:1180 × 490 × 180 mm
Weight:40 kg Approx.
