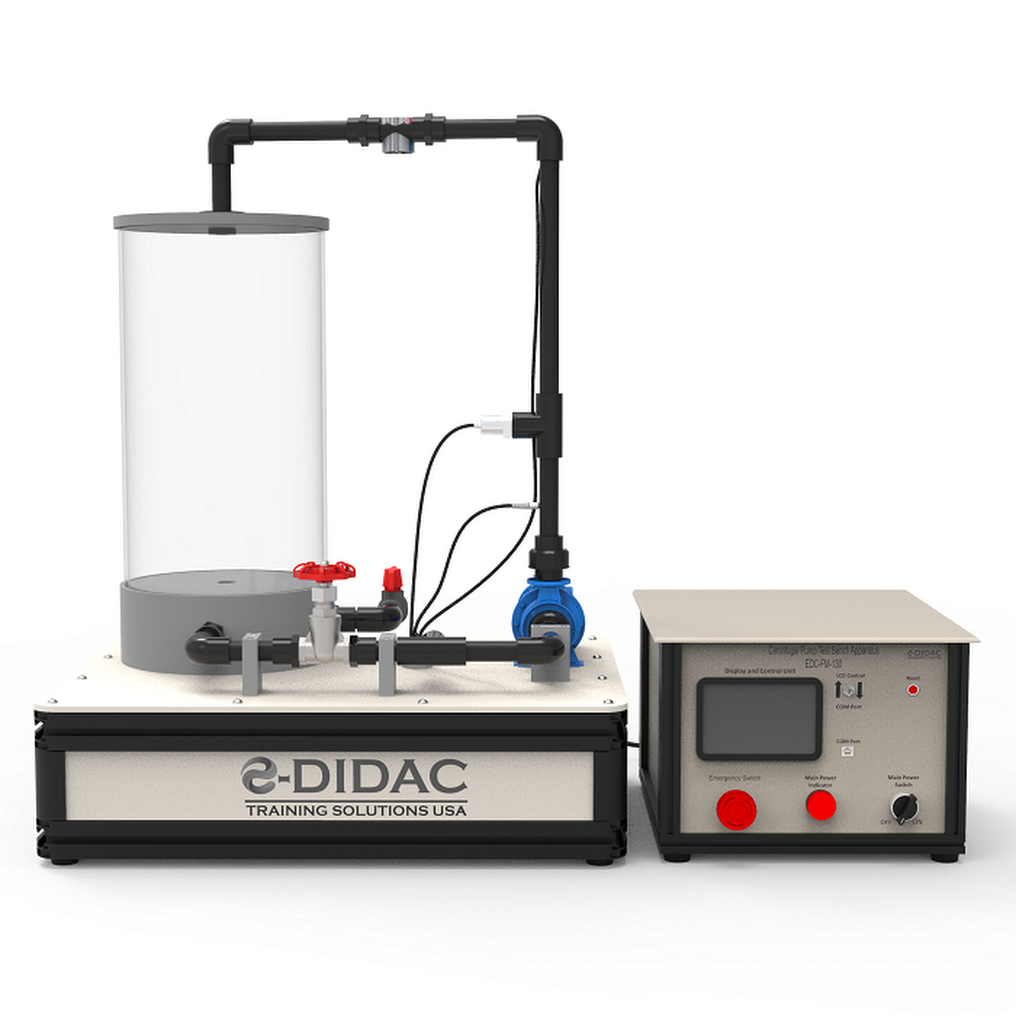

A centrifugal pump is a powered device intended to move a fluid by means of the transmission of rotational energy from one or more driven rotors, called impellers. Fluid enters the quickly rotating impeller along its axis and is cast out by centrifugal force along its circumference through the impeller's vane tips.
Specification
• Examination of Centrifugal Pump.
• Flow changing using valve at inlet.
• Pressure changing by changing valve position at outlet.
• Digital pressure and flow sensors.
• LCD Display for pressure and flow measuring values.
• Closed loop path for flow of water.
• Tank for the storage of water.
• Optional software with control functions and data acquisition via USB under Windows 8.1, 10.
Technical data
Centrifugal Pump:
• Type: Self-priming
• Maximum Flow Rate: 2700L/h
• Maximum Head: 36m
Motor:
• Type: Asynchronous motor
• Nominal Power: 450W
• Speed Control: Variable speed via frequency converter
Measuring Ranges:
• Outlet Pressure: -1 to 5 bar
• Inlet Pressure: -1 to 1.5 bar
• Speed: 0 to 3000 rpm
• Power Measurement: 0 to 1000W
Power Supply:
• Voltage: 230V
• Frequency: 50Hz
• Phase: Single-phase
Dimensions and weight
LxWxH:1100 x 640 x 600mm (L x W x H)
Weight:46 kg Approx.
