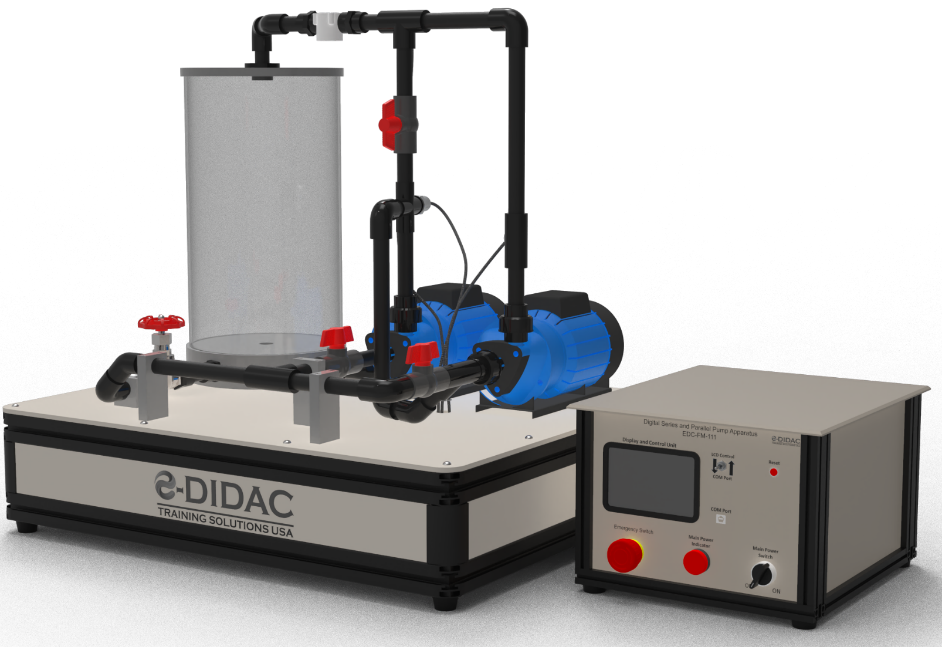

In compound systems, pumps can be linked in series or in parallel. In serial operation the heads of the pumps are added and in parallel operation the flow rates of the pumps are added. The tentative unit provides the fortitude of the characteristic behavior for single operation and interface of two pumps. The flow and pressure values displayed at the LCD. The flow can be changed by using manual operated valves. Series and parallel of pump changed by the combination of open close position of different valves present in the path of pumps.
Specification
• Examination and functioning behaviour of pumps in various operating modes.
• Single pump, series or parallel pump operation, configurable via valves.
• Closed water circuit contains centrifugal pumps.
• Adjustment of flow resistance by a valve at outlet of the pump.
• Sensors for pressure at inlet and outlet of the pumps and flow rate.
• Display and evaluation of the measured values as well as operation of the unit.
• Optional software with control functions and data acquisition via USB under Windows 8.1, 10.
Technical data
Centrifugal Pump Test Set:
• Pumps:
• Quantity: 2x identical centrifugal pumps
• Power Consumption: 370W
• Maximum Flow Rate: 21L/min
• Maximum Head: 12m
• Tank:
• Capacity: Minimum 13L
• Material: Transparent
• Pipes and Pipe Connections:
• Material: PVC
• Measuring Ranges:
• Inlet Pressure: 2x -1...1.5 bar
• Outlet Pressure: 3x 0...2.5 bar
• Power Supply:
• Voltage: 230V
• Frequency: 50Hz
• Phase: Single-phase
Dimensions and weight
LxWxH:1110x650x500mm (LxWxH)
Weight:62 kg Approx.
