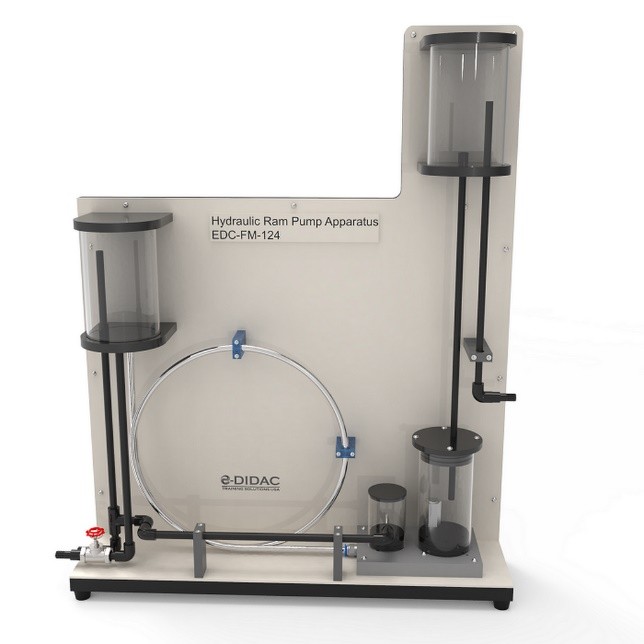

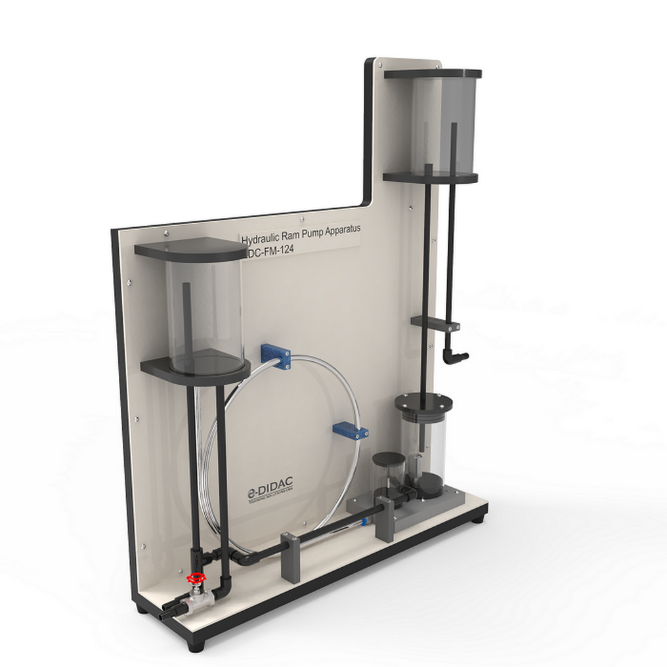

The apparatus can be used to demonstrate the creation and outcome of water hammer and to study how a hydraulic ram works. The water is fed to the ram via a long pipe at a gradient.
Snappishly disturbing the water flow can cause water hammer in the pipeline. This generally unsought effect is cast-off specifically in special equipment (hydraulic ram) to raise water to a developed level. Unlike conventional pumps, no additional mechanical energy is compulsory.
Specification
• Water Supply and Flow rate measurement using base Module EDC-FM-100.
• Creation and effect of water hammer.
• Fixed overflow tank is used as a water foundation.
• High tank with variable pump head.
• Waste valve with changeable lift, closes cyclically due to flow force of the water.
• Tank with non-return butterfly valve and air volume is used as an air vessel.
• Air volume in the air vessel is varied by vent valve.
Technical data
Hydraulic Ram Pump:
• Maximum Head: 300mm
• Maximum Flow Rate: 50L/hr
• Supply Head: Transparent PMMA
• Discharge Head: Transparent PMMA
• Dimensions: Minimum 1000x600x1300mm (LxWxH)
• Weight: Approx. 45kg
Base Module Technical Data:
• Pump:
• Power Consumption: 370W
• Maximum Flow Rate: 50L/min
• Maximum Head: 35m
• Maximum Pressure: 500mBar
• Storage Tank:
• Capacity: Minimum 180L
• Measuring Tank:
• At Large Volumetric Flow Rates: 40L
• At Small Volumetric Flow Rates: 10L
• Flow Rate Measurement:
• Type: Electronic sensor with LCD display
• Display Unit: L/min
• Resolution: 0.1L/min
Dimensions and weight
LxWxH:• L x W x H (mm): 1200 X 650 X 1350 approx.
Weight:60 kg approx.
