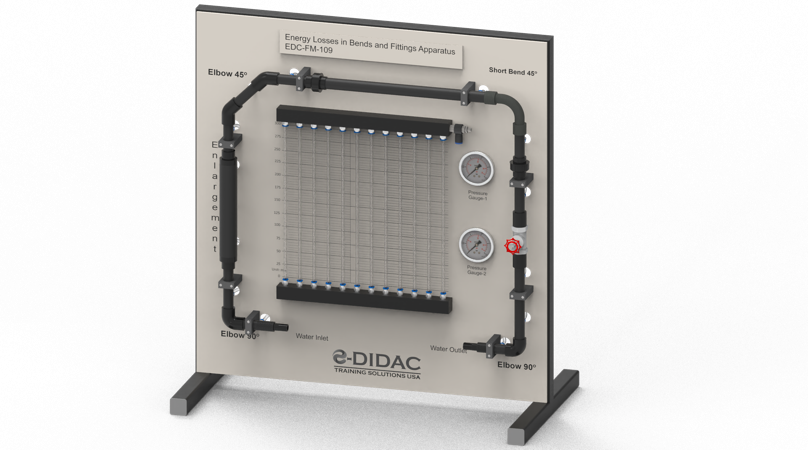

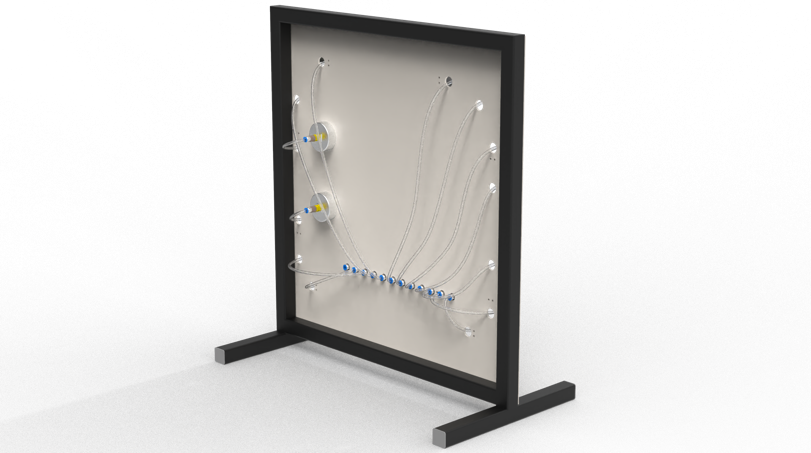

This experimental unit consists of a pipe section containing different segment fittings along the loop as well as sudden enlargement and contraction elements. All of the elements and fittings are connected to the manometer manifold while clear piping to visualize pressure differential.
Specification
Data Not Found .......
Technical data
Pipe Bends and Fittings:
• Material: PVC
• Pipe Size: 0.5-inch standard pipe size
• Types of Bends & Fittings:
• 90-degree miter bend
• 90-degree elbow
• Large radius bend
• Sudden expansion: 0.5 inch to 0.75 inch
• Sudden contraction: 0.75 inch to 0.5 inch
Gate Valve:
• Material: Stainless Steel
• Fitting Size: 0.5-inch pipe size
• Maximum Water Working Pressure: 2 bar
Manometer Tubes:
• Material: PPI
• Quantity: 12 nos.
Bourdon Gauges:
• Quantity: 2 nos.
• Measuring Range: 0 to 2.5 bar
• Mounting Type: Panel mount
Dimensions and weight
LxWxH:800 x 550 x 750mm (L x W x H)
Weight:
