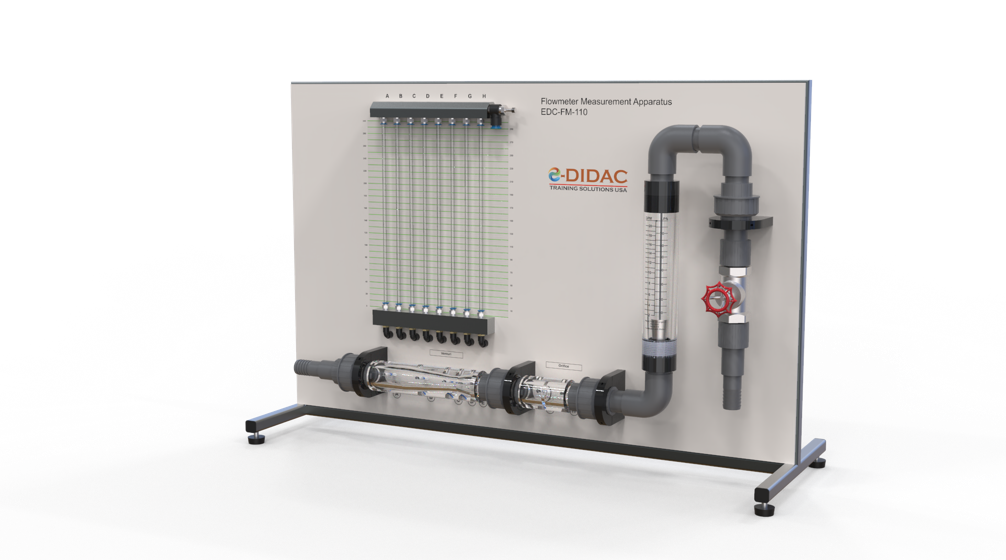

This experimental unit features a pipe section with three flow measurement devices: a Rotameter, an Orifice plate, and a Venturi meter. Pressure tapings connect to manometers mounted on a vertical panel, displaying pressure distribution on a calibrated scale. Students connect a water supply and set a steady flow to conduct experiments. The unit is compatible with the EDC-FM-100 or a laboratory water supply. An onboard flow control valve allows observation of pressure losses at different flow rates. A hand-pump is included to adjust the datum water level in the manometer tubes.
Specification
Data Not Found .......
Technical data
Measuring Instruments:
• Venturi meter, orifice plate, and rotameter
• 8 tube manometers to determine the pressure distribution in Venturi meter, orifice plate, and rotameter
• Pitot tube for total pressure measurement
Venturi Nozzle:
• Cross-sectional area: 85 to 340mm²
• Inlet angle: 10.5°
• Outlet angle: 4°
Flow Measurement Devices:
• Orifice plate flow meter: Diameter = 14mm
• Measuring nozzle: Diameter = 18.5mm
• Rotameter: Maximum flow rate = 1700 L/h
Manometers:
• 8 tube manometers with a pressure range of 390mmWC
Materials & Fittings:
• Acrylic tubes and acrylic Venturi holdings
• PVC pipe fittings
Water Supply:
• Compatible with SMT-FM-100 base module or laboratory water supply
Dimensions and weight
LxWxH:1100 x 675 x 900mm (L x W x H)
Weight:28 kg Approx.
