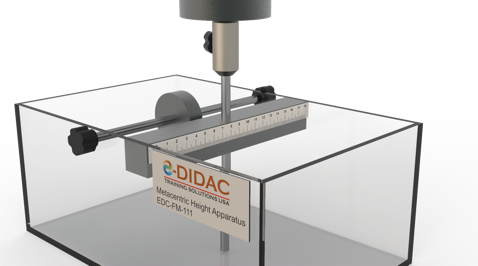

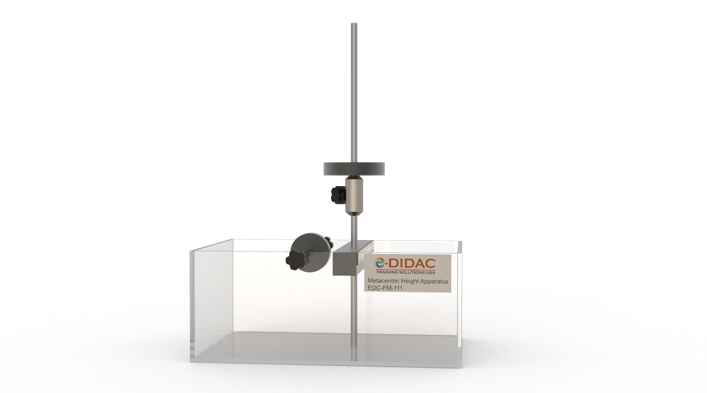

The unit can be used to study the stability of a floating body and to determine the metacenter graphically. In addition, the buoyancy of the floating body can also be determined. The experiment is conducted in a tank filled with water. A non-corrasion rectangular acrylic body is used as the floating body. Clamped weights that can be moved horizontally and vertically make it possible to adjust the center of gravity and the heel. A plumb bob, attached to the upper part of the mast, is used to measure the angle of heel of the floating base with the aid of a graduated scale.
Specification
Data Not Found .......
Technical data
Floating Body:
• Minimum size: 300 x 130 x 190 mm (L x W x H)
• Mast height: Minimum 400 mm
• Horizontal scale: 180 mm
• Vertical scale: 400 mm
• Height scale of the floating body: 120 mm
Clinometer:
• Scale range: ±30° or better
Weights:
• Floating body without clamped weights: 2.7 kg
• Vertical clamped weight: 575 g
• Horizontal clamped weight: 196 g
Water Tank:
• Minimum capacity: 50L
Dimensions and weight
LxWxH:Minimum size: 660 x 450 x 220 mm (L x W x H)
Weight:6 kg Approx.
