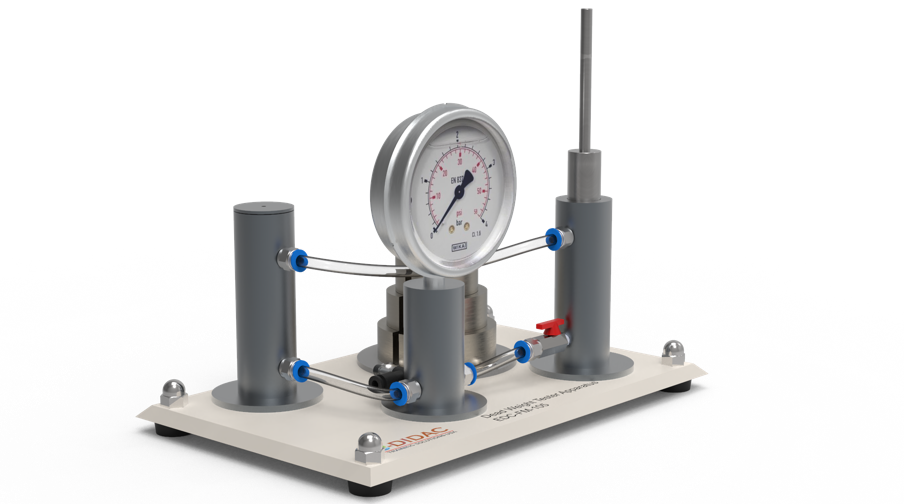

The Dead Weight Pressure Gauge Calibrator consists of a precision-machined piston and cylinder assembly mounted on levelling screws. A Bourdon gauge is supplied for calibration. The weights supplied are added to the upper end of the piston rod, which is rotated to minimise friction effects. The gauge is thus subject to known pressures, which may be compared with the gauge readings and an error curve drawn.
Specification
• Calibration of a Bourdon type gauge
• Determination of Hysteresis Curve
Technical data
Piston Assembly:
• Minimum piston diameter: 18mm
• Piston area: 255 mm² or better
• Approximate piston weight: 500g
Pressure Measurement:
• Measuring range: 0 to 2.5 bar
Dimensions and weight
LxWxH:L x W x H (mm): 350 x 200 x 300
Weight:10 kg Approx.
