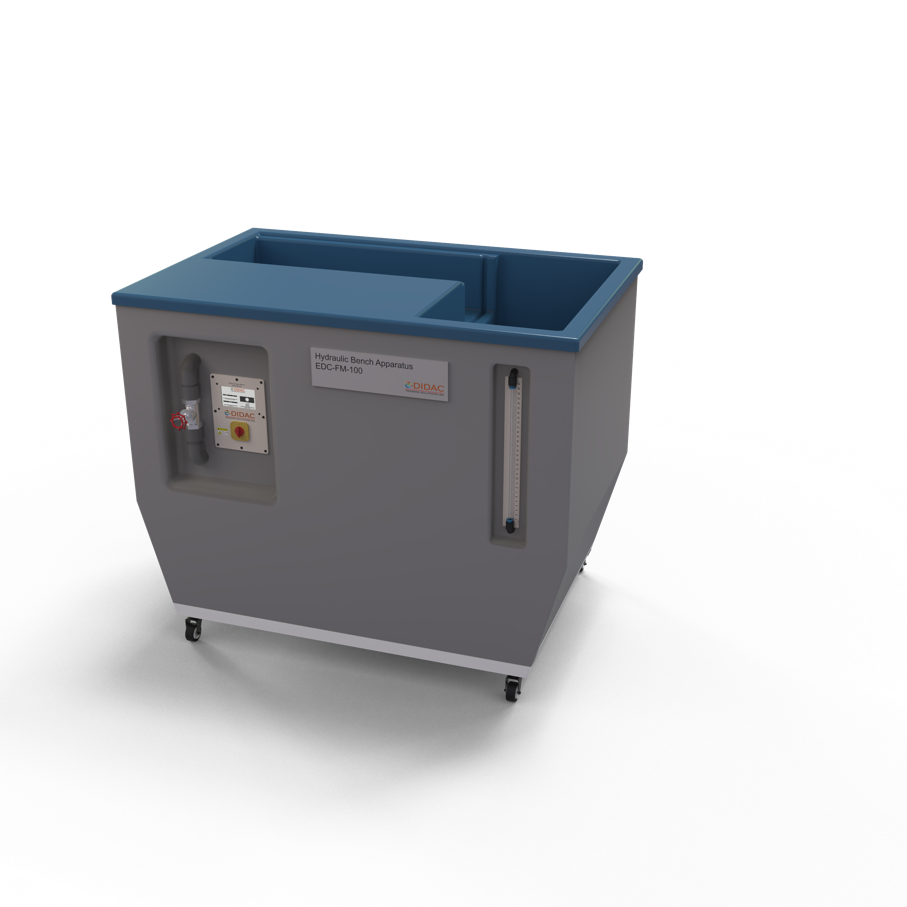

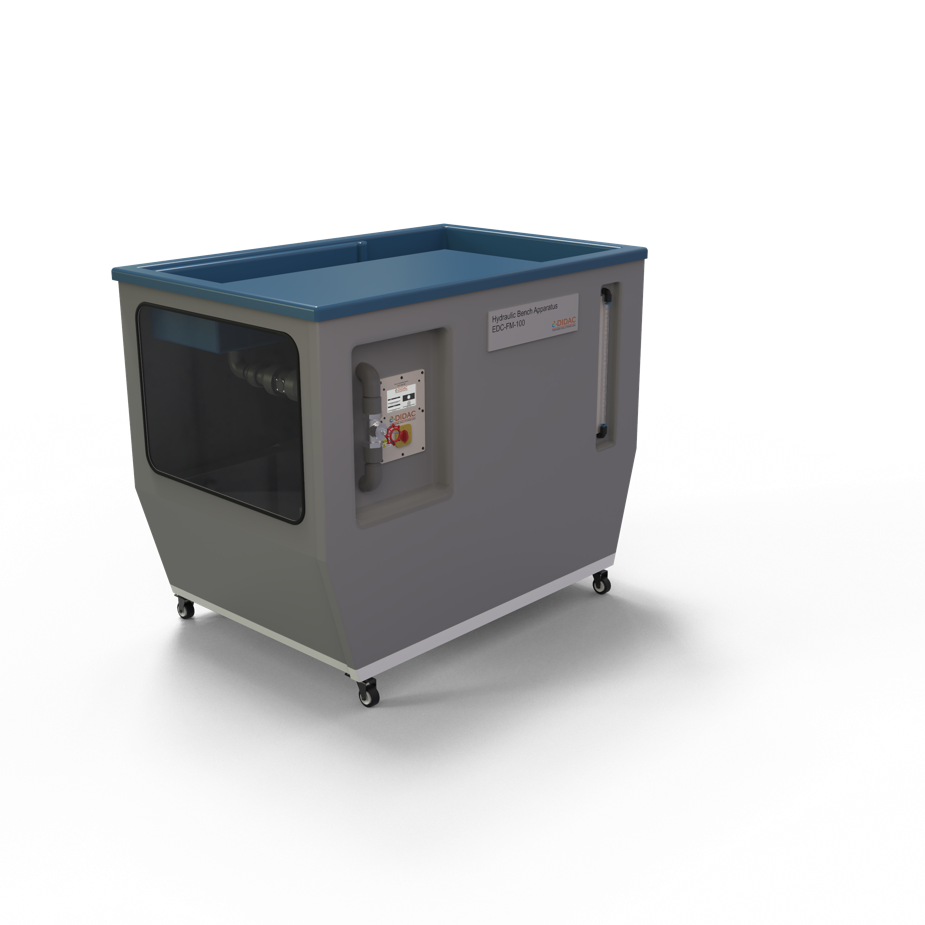

The EDIDAC Hydraulic Bench is designed for Fluid Mechanics and Water Supply laboratories, providing controlled water flow for various experimental modules. It features a large base tank, a closed water circuit with a powerful pump, and a measuring tank for water collection. The main frame is made of stainless steel, with fiberglass upper and lower tubs for durability. A hand-operated valve adjusts the water flow, and an electrical box includes a pump switch, circuit protection, and a flow rate display. Optional Fluid Mechanics Software (SEFM-01) assists with data processing and includes experiment manuals. The unit is mounted on lockable wheels and includes a sight gauge for water level monitoring.
Specification
• Hydraulic Bench is base module for supplying water for experimental units in fluid mechanics lab.
• Main Structure is built completely in stainless steel while Storage tank, measuring tank and work surface made of GRP.
• Closed water circuit with storage tank, water pump and measuring tank.
• Measuring tank divided in two sections for volumetric flow rate measurements.
• Work surface with integrated flume for experiments with weirs.
Technical data
Pump:
• Power consumption: 250W
• Maximum flow rate: 150 L/min
• Maximum head: 7.6m
Storage and Measuring Tanks:
• Storage tank capacity: Minimum 180L
• Large volumetric flow rate measuring tank: Minimum 60L
• Small volumetric flow rate measuring tank: Minimum 10L
Flume:
• Minimum dimensions: 530 x 150 x 180 mm (L x W x H)
Measuring Equipment:
• Measuring beaker with scale for very small volumetric flow rates: Minimum capacity 2L
• Stopwatch measuring range: 0 - 9h 59min 59sec
Dimensions and weight
LxWxH:L x W x H (mm): 1250 x 800 x 1100 Approx.
Weight:80 kg Approx.
