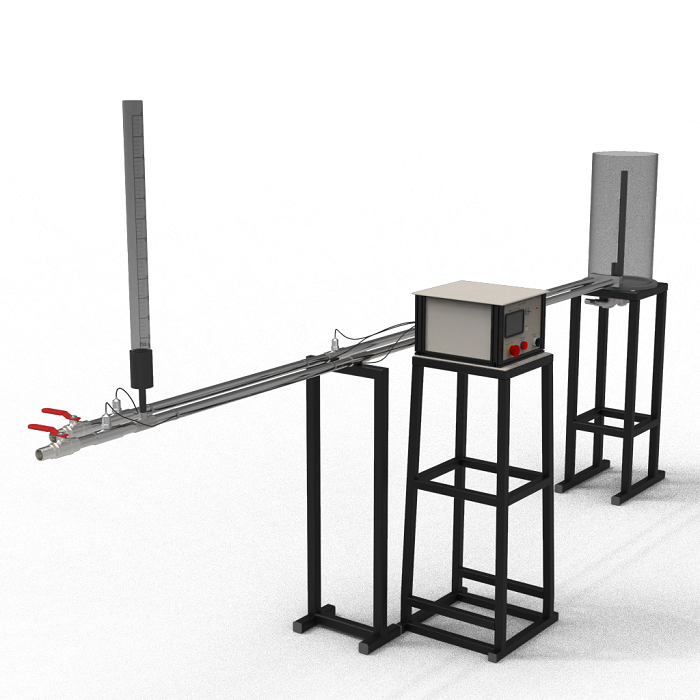

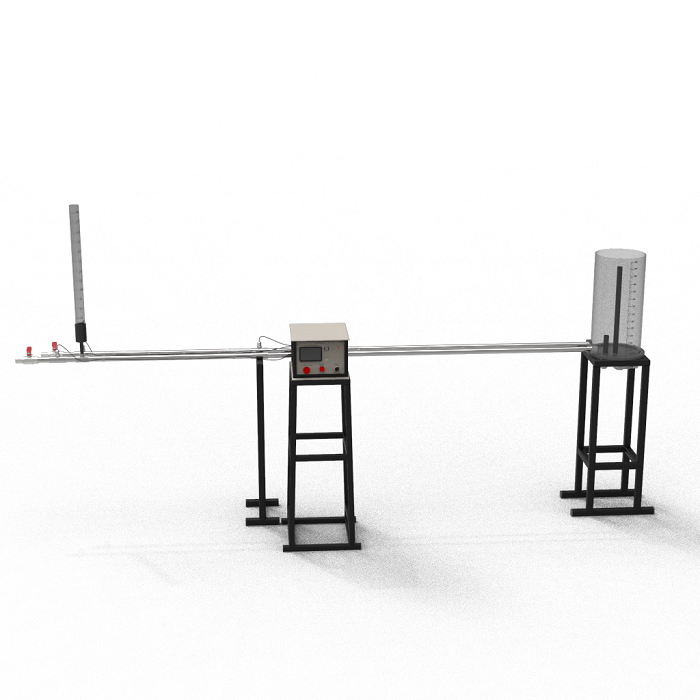

Apparatus is used to generate and visualize water hammer in pipes and to demonstrate how a surge chamber works. The trainer contains the first pipe with a ball valve and a surge chamber and a second pipe section with a solenoid valve. Water hammer and surgency produced by first pipe using ball valve and in second pipe solenoid act for water hammer.
Specification
- Working of a surge chamber.
- Pipe section with ball valve and surge chamber.
- Surge chamber designed of a transparent tank.
- Pressure sensor behind the water chamber for measuring the pressure wave.
- Pipe section with solenoid valve and two pressure sensors for measuring water hammer.
- For water supply in storage tank Hydraulic Bench can be used.
Technical data
- Pipe section for pressure oscillations:
- Length: 5900mm.
- Inner diameter: 26mm.
- Ball valve.
- Surge chamber, PMMA.
- Height: 850mm.
- Inner diameter: 50mm.
- Pipe section for water hammer:
- Length: 5900mm.
- Inner diameter: 26mm.
- Distance between sensors: 3000mm.
- Solenoid valve, constant closing time: 20 to 30ms.
- Storage Tank: 50L.
- 230V, 50Hz, 1 phase.
Dimensions and weight
LxWxH:7000 X 900 X 2100
Weight:43 kg
