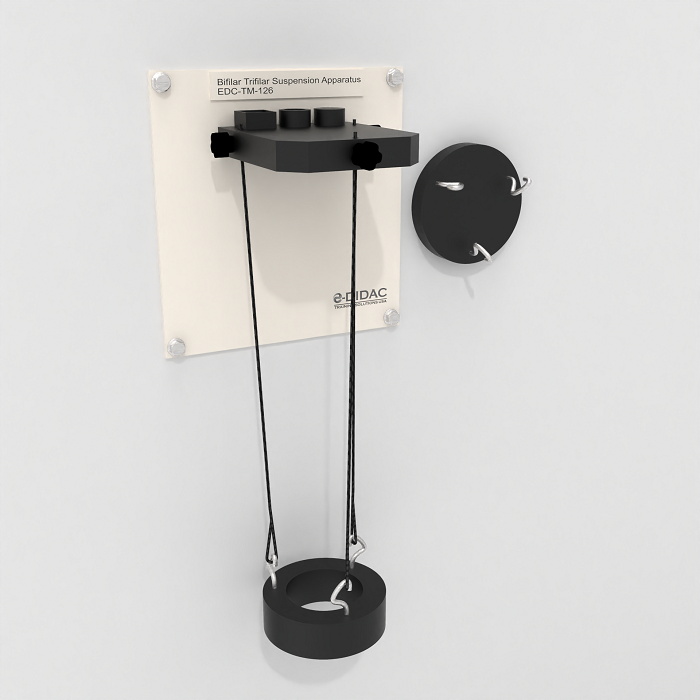

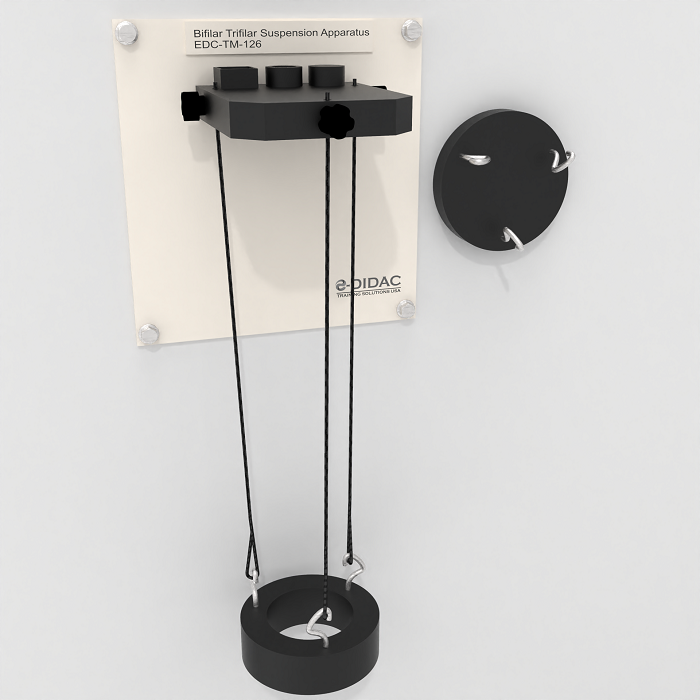

In a bifilar suspension, the pendulum body is suspended over two threads. The pendulum body oscillates in a plane purely translationally without rotation. This kind of pendulum can be considered as a mathematical pendulum. In a trifilar suspension with three threads, the pendulum body is set in a torsional vibration. The torsional vibration can be used to determine the moment of inertia by experiment.
Specification
- Well-made base plate.
- Study of the vibration behavior of various pendulum bodies in bifilar and trifilar suspension.
- Study of a mathematical pendulum (bifilar) and a physical pendulum (trifilar).
- Choice of three pendulum bodies: beam, cylinder, circular ring.
- Change the thread length with a clamping device.
- Stopwatch to measure the oscillation period.
- Determine the mass moment of inertia.
Technical data
- Pendulum bodies:
- Beam:
- L X W X H: 40 x 40 x 160mm.
- Mass: 2kg.
- Cylinder:
- Diameter: 160mm.
- Height: 19mm.
- Mass: 3kg.
- Circular ring:
- Outer diameter: 160mm.
- Inner diameter: 100mm.
- Height: 41mm.
- Mass: 4kg.
- Thread length: up to 2000mm.
- Stopwatch: 1/100s.
Dimensions and weight
LxWxH:350 X 450 X 350
Weight:12 kg
