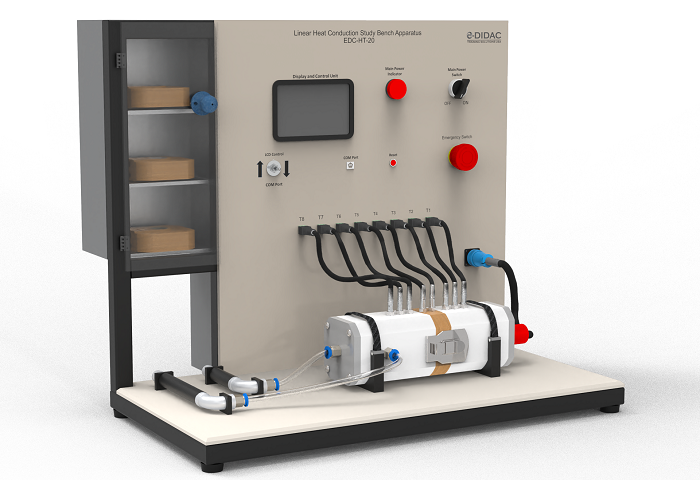

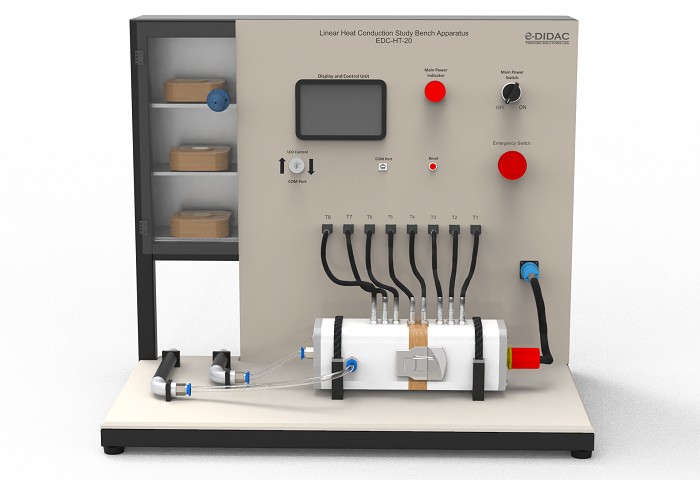

This experiment has a solid brass bar of circular cross-section, made in two sections with an transposable middle section. The first brass section includes temperature sensors and the electric heater as heat source. The second brass section includes a small water-cooled chamber (heat sink) and more temperature sensors.
Optional Software is available for Data Acquisition and Control Function.
Specification
- Heater for heating purpose.
- 4 types of middle changeable section.
- Self-contain place for placing different middle sections.
- LCD display for temperature.
Technical data
- The transposable middle sections are of different metals:
- Brass.
- Aluminum.
- Stainless steel.
- Copper.
- Heater:
- 0 - 120W.
- Temperature sensors: 8.
- External Water flow.
- Quick fitting for water flow.
- 230V AC 50 Hz.
Dimensions and weight
LxWxH:600 X 350 X 600
Weight:22 kg
