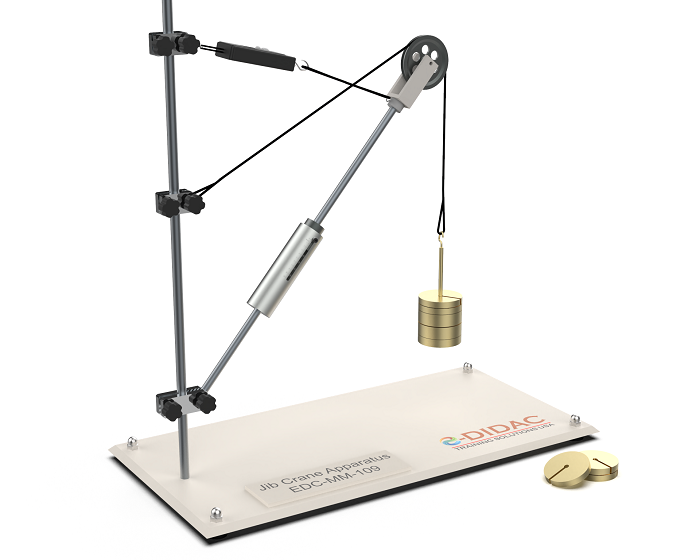

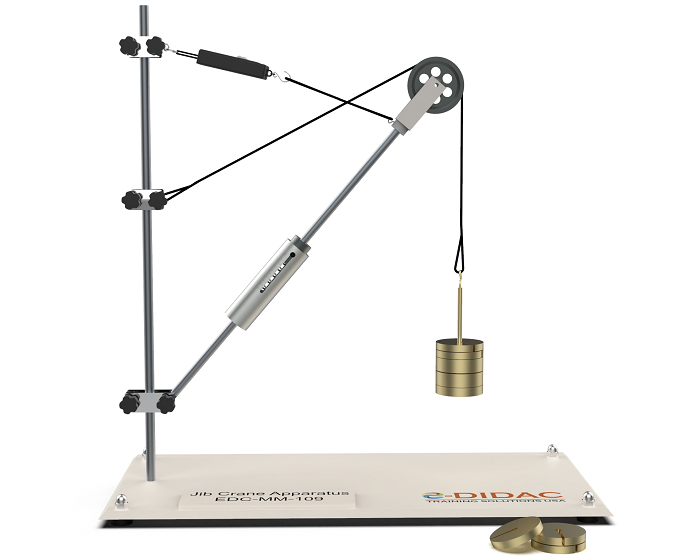

A jib arm is the horizontal or near-horizontal beam used in many types of cranes to support the load clear of the main support. An archaic spelling is gib. Usually jib arms are attached to a vertical mast or tower or sometimes to an inclined boom. Apparatus contains a jib and crane for experimentation to study the effect of different weight hanged.
Specification
- Tensile and compressive forces in a planar central force system.
- United spring balances in the bars.
- Max. Load on crane jib 50N.
- Stainless steel retaining bar.
- Well-made base plate.
Technical data
- Spring balance for tensile forces:
- Tensile force: 0 - 50N.
- Graduation: 0.5N.
- Spring balance for compressive forces:
- Pressure force: 0 - 50N.
- Graduation: 1N.
- Weights:
- 1x 1N (hanger).
- 4x 1N.
- 1x 5N.
- 4x 10N.
Dimensions and weight
LxWxH:600 X 250 X 650
Weight:15 kg
