Hooke’s law defines the elastic behavior of components where deformation is proportional to the load acting upon them. demonstrates the application of Hooke’s law and shows the deformation of tension springs under load.

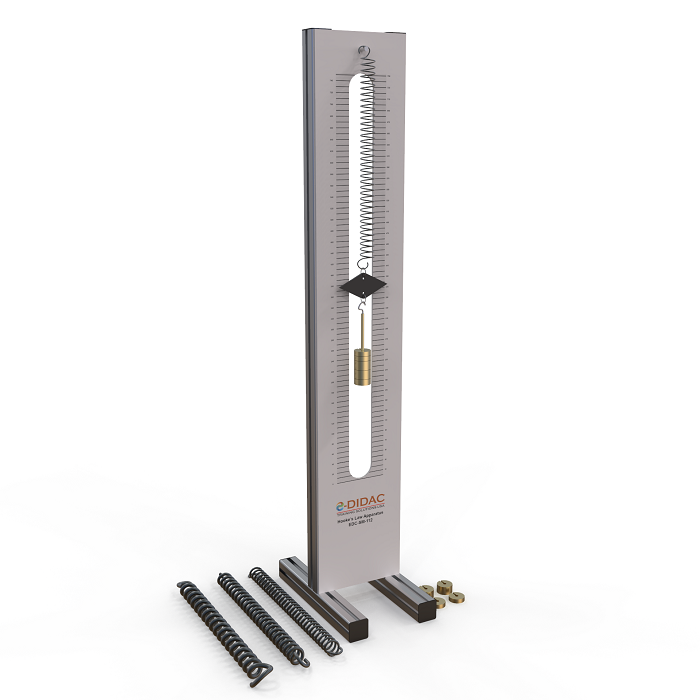

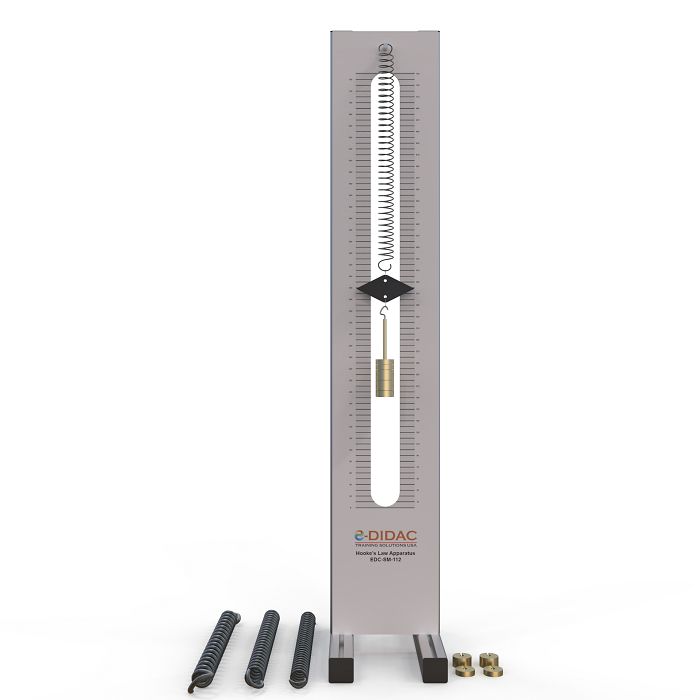

In this apparatus a spring is suspended from a stand and loaded. The extension is read-off directly from the scale printed on the sheet on apparatus. As a linear relationship is shown between the active force and the elongation of the spring, Hooke’s law can be applied.
Specification
- Experiments relating to Hooke’s Law.
- Stand with printed scale on sheet.
- Helical springs as tension springs.
- Tension springs configured.
- Load applied to tension spring by provided weights.
Technical data
- Helical spring short:
- Coils: 53.
- Ø=18mm.
- Wire diameter: Ø=1mm.
- Helical spring long:
- Coils: 109.
- Ø=18mm.
- Wire diameter: Ø=1mm.
- Scale, graduation: 1mm.
- Weights:
- 1 x 1N (hanger).
- 10 x 0.5N.
Dimensions and weight
LxWxH:250 X 250 X 1000
Weight:11 kg
