Torsion is the twisting or wrenching of a body by the exertion of forces tending to turn one end or part about a longitudinal axis while the other is held fast or turned in the opposite direction.
A bending moment is a measure of the bending effect that can occur when an external force (or moment) is applied to a structural element.

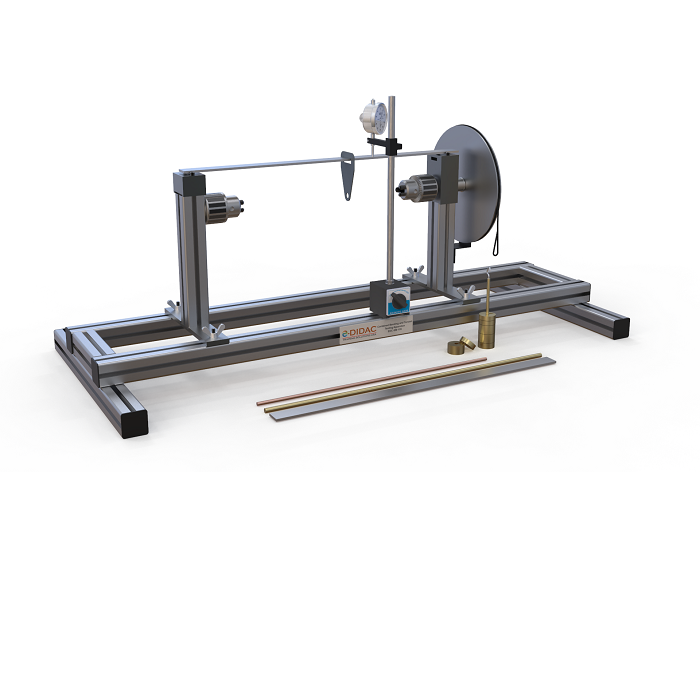

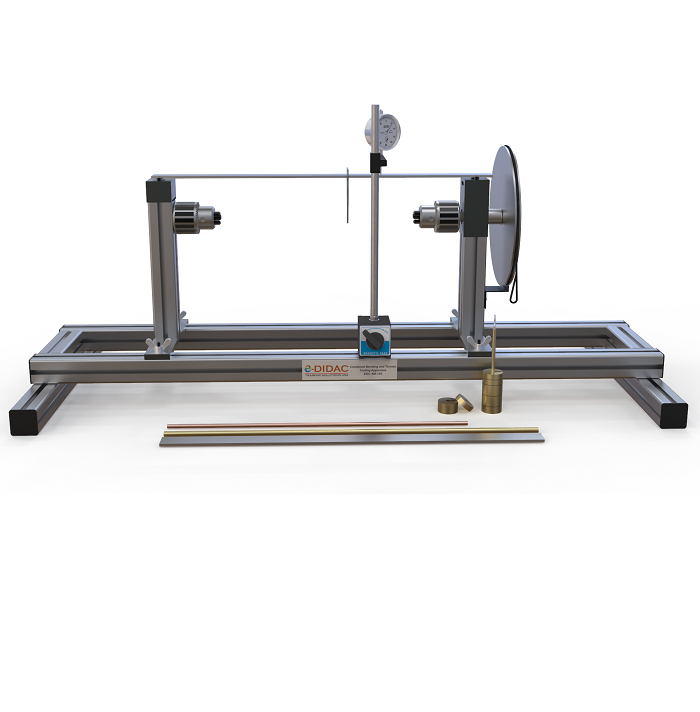

Apparatus contains the fitting for both the torsion and bending experiment performance. Specimen for both the experimentation given with the apparatus.
Specification
- Elastic deformation of bars under bending or torsion
- Bending tests performance.
- Torsion tests performance.
- 2 changeable blocks with clamping chuck for torsion tests and supports for bending tests.
- Weights to generate the bending or twisting moment.
- Dial gauge.
Technical data
- Bars for bending tests:
- Material: aluminium, steel, brass, copper.
- LXW 510x20mm: h=3 - 10mm.
- LXH 510x5mm: w=10 - 30mm.
- WXH 20x4mm: l=210 - 510mm.
- LXWXH: 20x4x510mm (al, st, brass, cu).
- LXWXH: 10x10x510mm (aluminium).
- Torsion bars:
- Material: aluminium, steel, brass, copper.
- Ø 10mm: l=50 - 640mm (aluminium).
- ØXL: 10x50mm/10x340mm (aluminium, steel, copper, brass).
- Diameter with L=50/340mm: Ø 5 - 12mm (steel).
- Dial gauge:
- 0 - 10mm, graduation: 0.01mm.
- Tape measure.
- Weights:
- 1x 100g (hanger).
- 1x 100g.
- 1x 400g.
- 1x 500g.
- 1x 900g.
Dimensions and weight
LxWxH:1000 X 250 X 300
Weight:22 kg
