A solid understanding of the chattels of materials is important for technical and scientific professions. This knowledge helps select the appropriate material, monitor production and processing and confirm the requirements in terms of a component. The materials test provides the necessary data in a reproducible and exactly quantified manner. The tensile test, bending test and hardness test are all part of classic destructive materials testing. Apparatus is also available in 50kN, 100kN, 250kN, 500kN and 1000kN. According to test load, size and shape of apparatus may change.
Specification
- Based on industrial standards, hydraulic operated trainer or material testing.
- Manual operated lever arm for applying load.
- Digital pressure and Dial Gauge.
- Tensile and compression forces generation.
Technical data
- Measuring range:
- Force: 0 to 500kN, Increment/step: 0.5kN.
- Travel: 0 to 700mm,
- Increment/step: 0.01mm.
- Test Force:
- Max. 500kN.
- Free Installation space for specimens: 250x65mm.
- 20 tensile specimens. Material: AI, Cu, St, Brass.
- 20 hardness specimens.
- Sphere for hardness testing: Ø 14mm.
- EDIDAC software with Data Acquisition.
- 230V, 50Hz, 1 phase.
Dimensions and weight
LxWxH:1200 X 850 X 2400
Weight:2200 kg

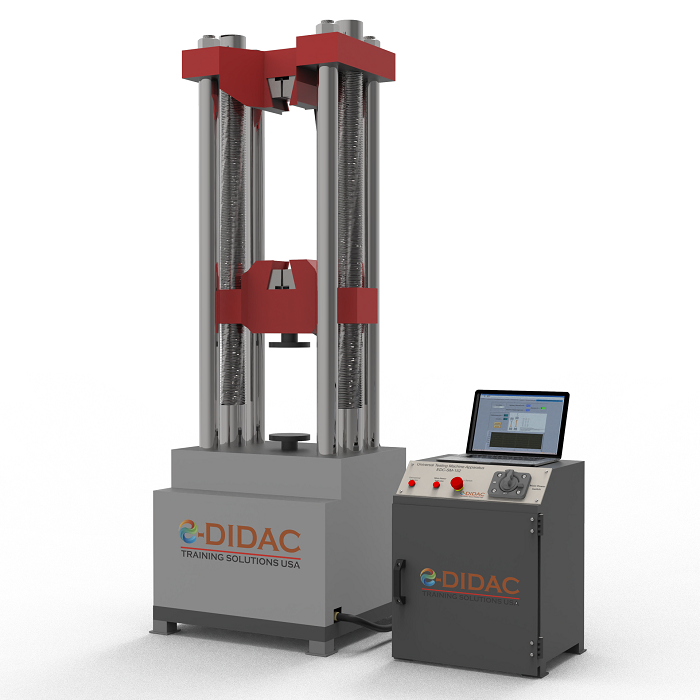

 - Copy.png "Universal Testing Machine (EDC-SM-152-500)")

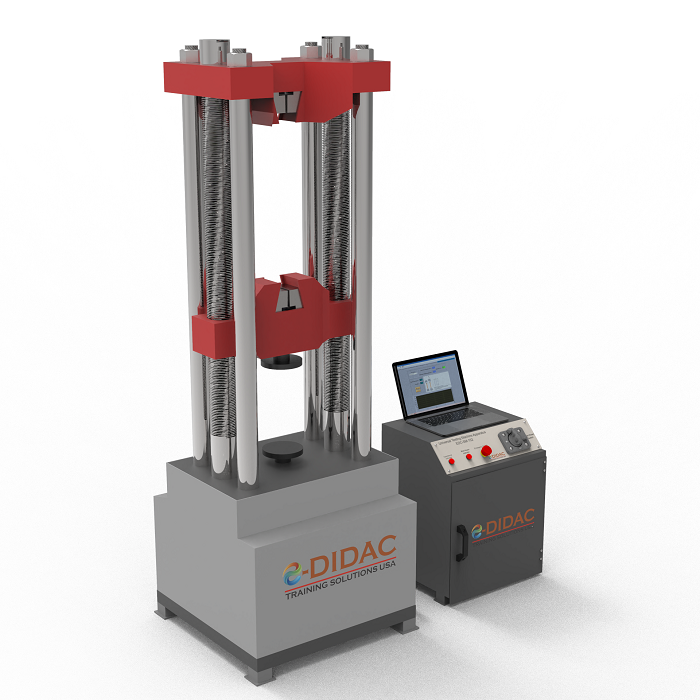

 - Copy.png "Universal Testing Machine (EDC-SM-152-500)")
