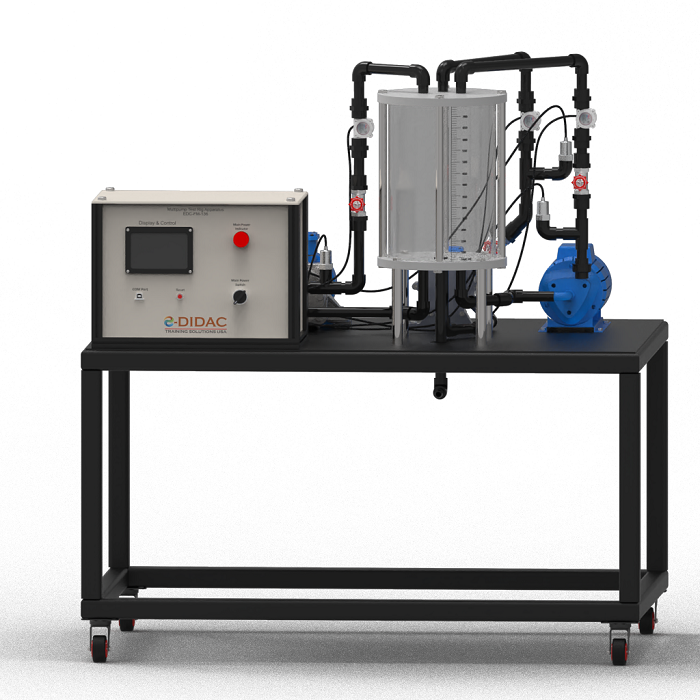

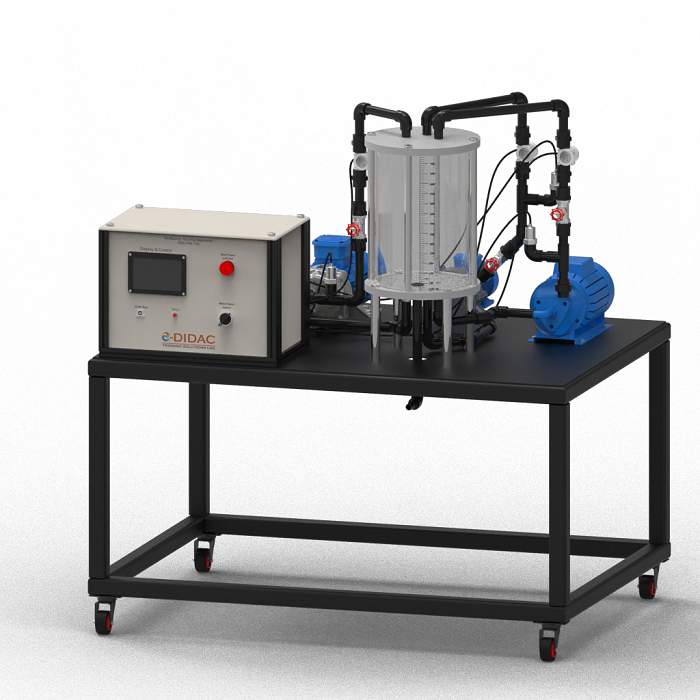

Multi-Pump Test Rig has been designed to demonstrate the working characteristics (head flow curves and efficiency) of a series of different types of pumps, each having a broadly similar input power.
Optional Software is available for Data Acquisition and Control Function.
Specification
- Comparison of pumps.
- Closed water circulation.
- Pressure comparison of different pumps.
- LCD for Display and Control.
- Graduated water storage tank.
Technical data
- Water tank:
- Transparent with graduation.
- 50 Ltr.
- Three pumps:
- Gear Pump: 0 to 25 LPM.
- Centrifugal Pump: 0 to 25 LPM.
- .Plunger Pump: 0 to 25 LPM.
- Flow measurement sensor.
- Pressure measuring sensor.
- 230V AC 50Hz.
Dimensions and weight
LxWxH:1800 X 1600 X 1200
Weight:100 kg
