Vibrations occur in a variety of ways in engineering. In some where they are needed to happens, but in engines and machines they are unwanted. Apparatus is used to study the free and forced vibrations. Apparatus contains an aluminum frame profile. A bar oscillator is used for vibration.
Specification
- Study of mechanical vibration theory:
- Free Vibration
- Forced Vibration
- A spring attached with bar.
- Bar oscillator.
- Motor for oscillation.
- Drum Recorder.
Technical data
- Coil sprig:
- 0.75N/mm.
- 1.5 N/mm.
- 3N/mm.
- Digital sensor for examining oscillations of the bar.
- Motor for oscillation, variable:
- 0 to 50 Hz.
- Drum recorder: 20mm/s, width 1000mm.
- 230V, 50Hz, 1 phase.
Dimensions and weight
LxWxH:350 X 1200 X 1100
Weight:22 kg
 (1) - Copy.png)

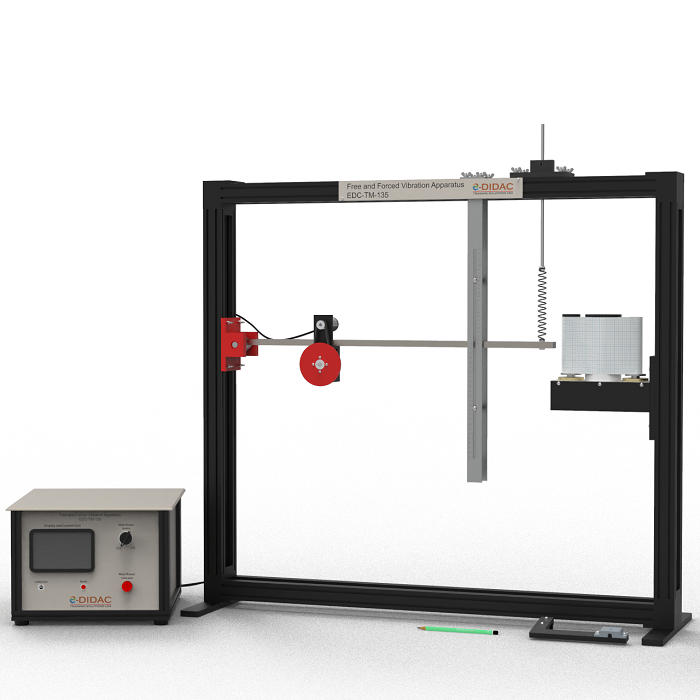

 (1) - Copy.png "Free and Forced Vibration Apparatus (EDC-TM-135)")

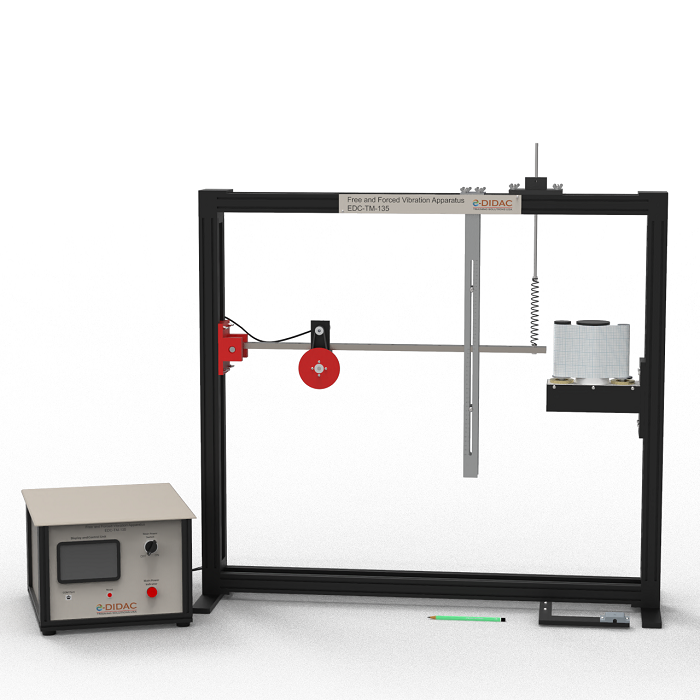

 (1) - Copy.png "Free and Forced Vibration Apparatus (EDC-TM-135)")
