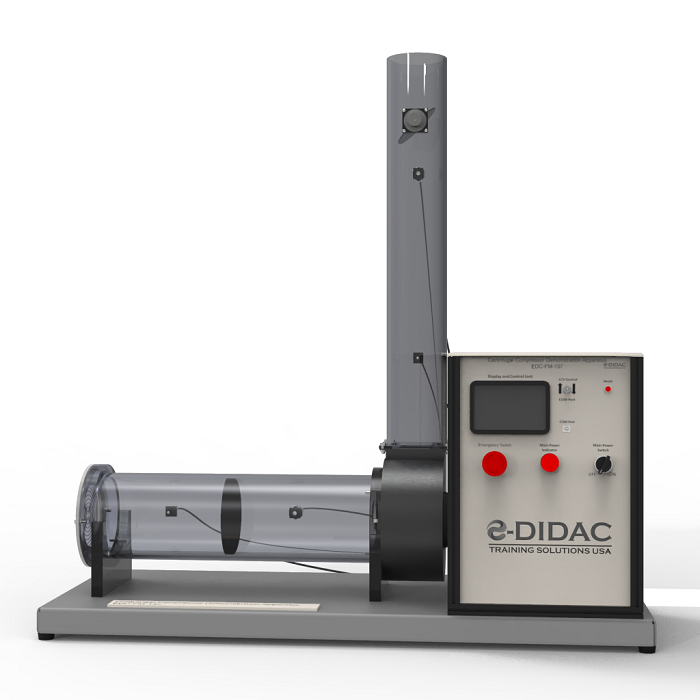

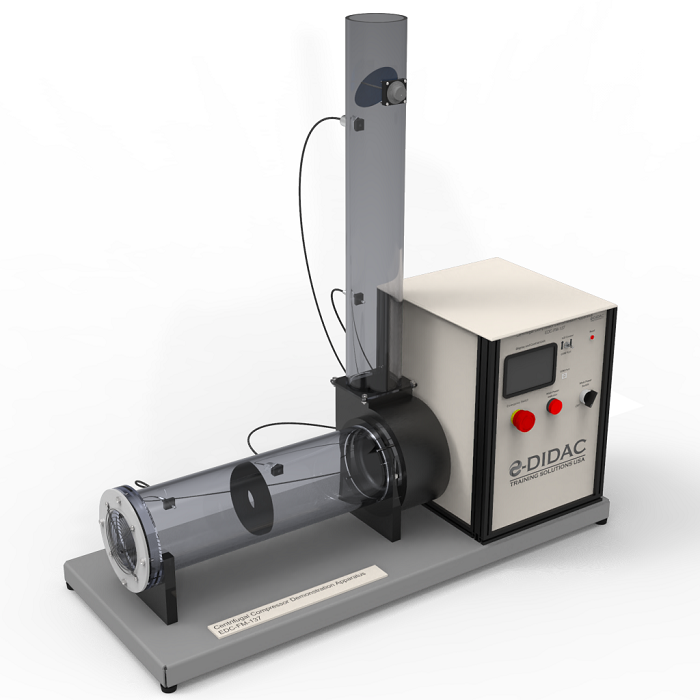

Apparatus is a motor driven multi-stage centrifugal compressor, mounted on a frame with transparent air inlet and outlet. Aperture allows the air flow rate to be varied manually. A sensor used to measure air flow rate. Compressor speed is variable.
Optional Software is available for Data Acquisition and Control Function.
Specification
- Adjustable aperture.
- Variable fan speed.
- LCD display.
- Transparent Horizontal and vertical duct.
- Temperature sensors
Technical data
- Max flow rate: 20 l/s typical.
- Max head: 6 kPa.
- Max fan speed: 3000 RPM.
- Motor power rating: 250 W.
- Air Duct:
- Vertical: 700mm.
- Horizontal: 450mm.
- 230V AC 50Hz.
Dimensions and weight
LxWxH:900 X 600 X 950
Weight:35kg
