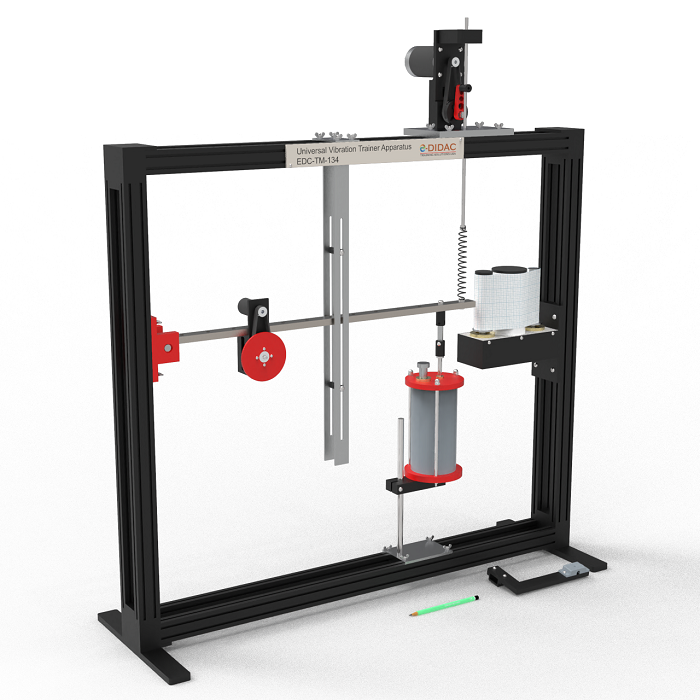

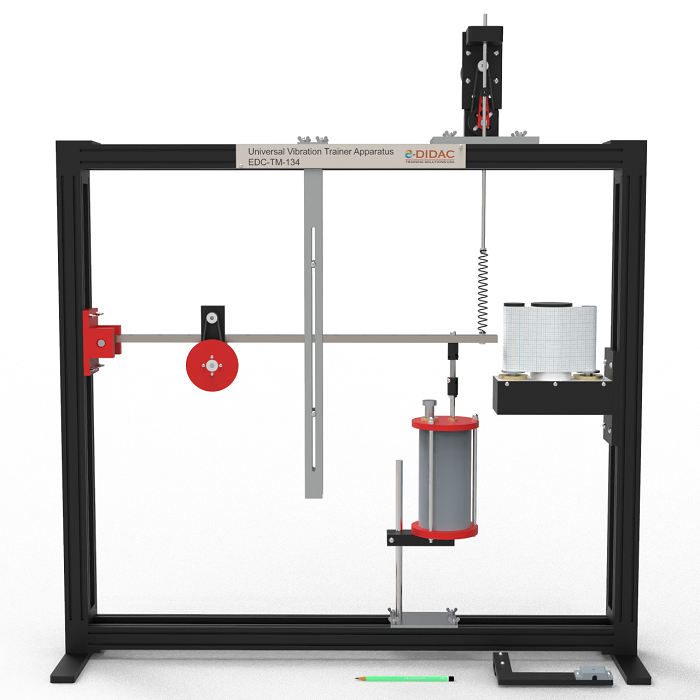

Universal Vibration trainer cover many topics from the field of vibration theory through experimentation. Simple pendulum-swinging forced vibrations with resonance to vibration absorption topic can also studied using this trainer. Other accessories also available for more experimentation. A drum recorder is attached with the trainer to study the effect of vibration.
Optional Software is available for Data Acquisition and Control Function
Specification
- Study of damping, resonance, dual mass system and vibration absorption.
- Pendulum oscillators, bar oscillators and spring mass oscillator.
- Adjustable oil damper.
- Electrically operated drum recorder.
Technical data
- Rigid beam, Elastic beam.
- Tension pressure spring:
- 0.75N/mm, 1.5N/mm, 3N/mm.
- Imbalance exciter:
- 0 to 50Hz.
- Oil damper: 5 to 15Ns/m.
- Drum recorder: 20mm/s, width 1000mm.
- Absorber: adjustable 5 to 50Hz.
- Polar chart recorder: 100mm.
- 230V, 50Hz, 1 phase.
Dimensions and weight
LxWxH:450 X 1200 X 1200
Weight:35 kg
