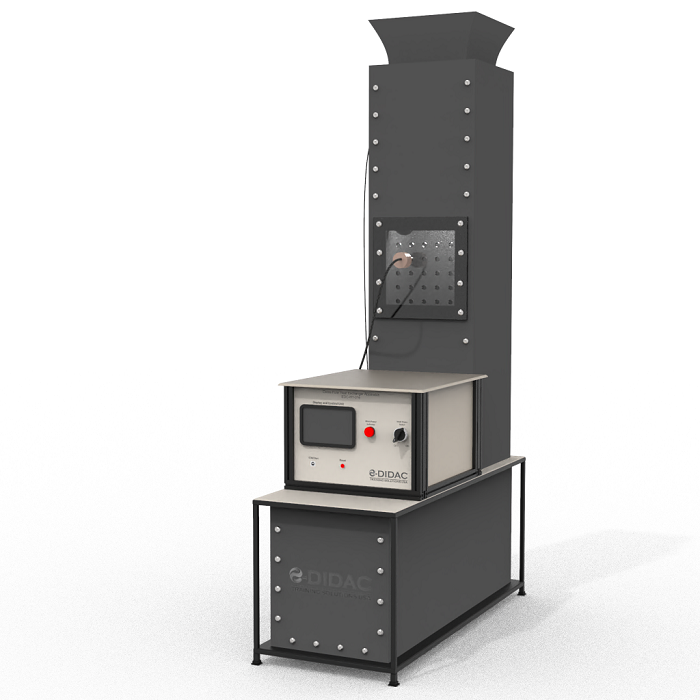

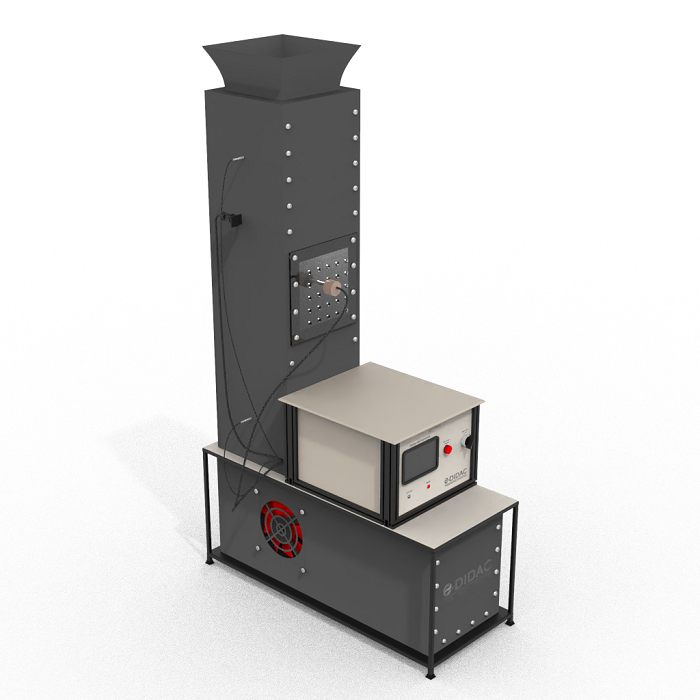

The apparatus consists of a channel with an inlet fan, a heater and temperature sensor to measure temperatures. LCD display for control and display of fan speed and temperature value. A cross-flow heat exchanger exchanges thermal energy from one airstream to another fluid in an air handling unit (AHU).
Optional Software is available for Data Acquisition and Control Function.
Specification
- Air duct.
- Air fan with variable speed.
-
- Temperature sensor.
- Heat Exchanger.
- Air flow sensor.
Technical data
- Duct: 150X 150 mm, height 750mm.
- Fan with variable speed:
- power: 50W.
- max. velocity of air: 2m/s.
- max. speed: 850min-1.
- Heater with variable heating power:
- Water tubes for crossflow of water.
- 0 – 300W
- 230V, 50Hz, 1 phase.
Dimensions and weight
LxWxH:400 X 600 X 2000
Weight:50 kg
