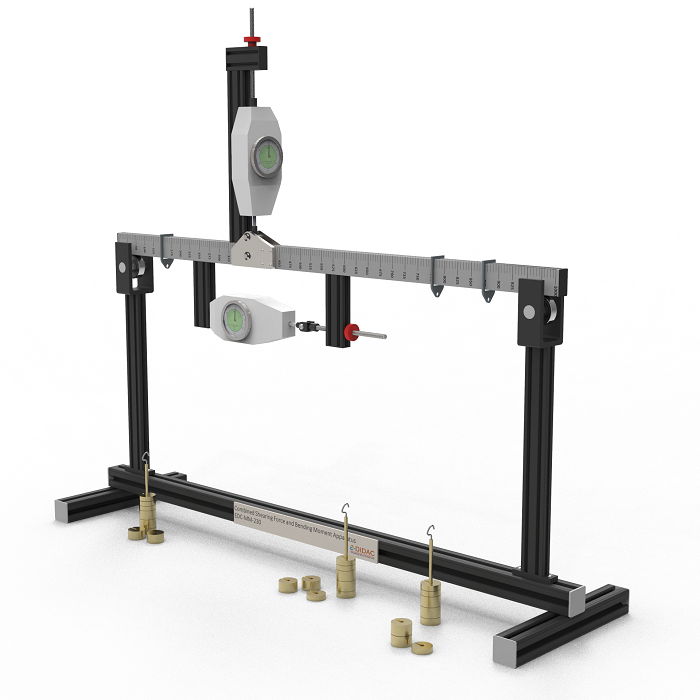

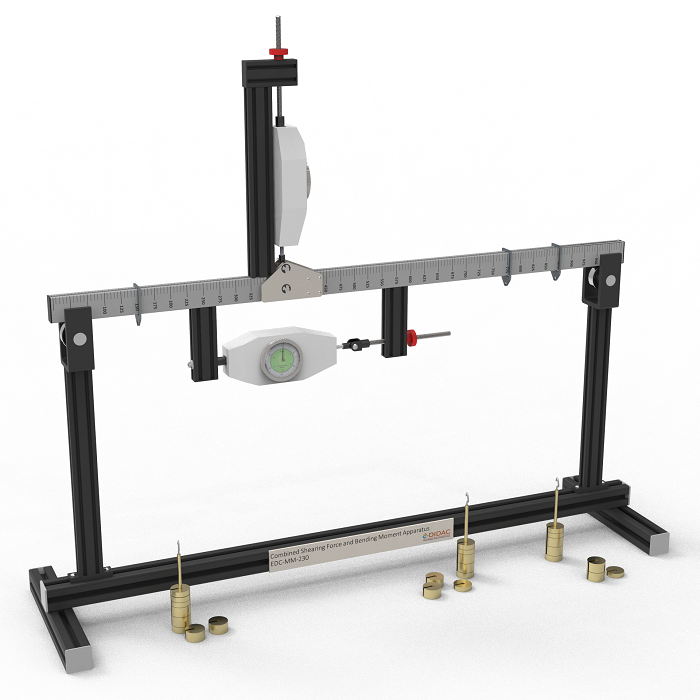

The apparatus used to analyze the effect of both shearing and bending moment in one unit. An aluminum bar us cut into two unequal lengths, creating a ‘cut’ section. At ‘cut’ section a deep groove ball bearing in one beam within a block with the other beam. The vertical movement is shear and rotation causes bending moment.
Specification
- A beam cut in at 1/3rd point.
- Two force gauges:
- Shear moment
- Bending moment.
- Weights to apply.
- Scale available.
- Hooks to hang weights
Technical data
- Beam lengths:
- 650mm.
- 350mm.
- Beam cross section area: 20mm X 40mm.
- Scale graduated: 25mm.
- Load hangers: 3 qty.
- Force gauge: 2 qty.
Dimensions and weight
LxWxH:1200 X 300 X 500
Weight:15 kg
