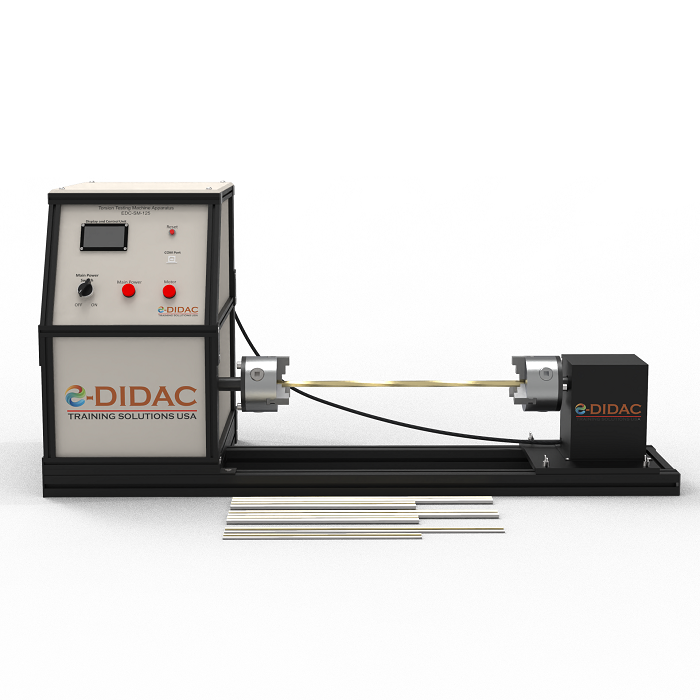

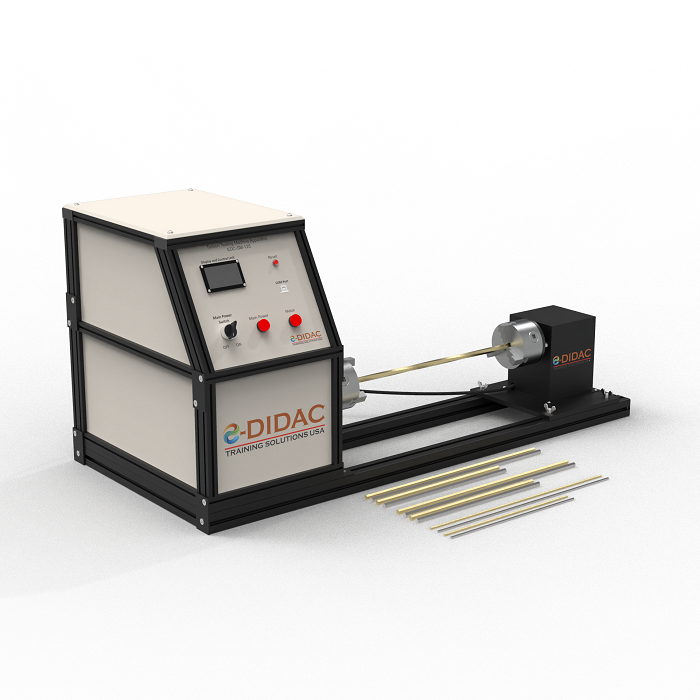

Apparatus contains a motor driven shaft to twist the specimen until it breaks. A digital display for the measurement of torque applied by the motor.
Torsion testing involves the twisting of a sample along an axis and is a useful test for acquiring information like torsional shear stress, maximum torque, shear modulus, and breaking angle of a material.
Optional Software is available for Data Acquisition and Control Function.
Specification
- Torsion test for different material.
- Long and short specimen of brass, steel and aluminium.
- Twisting angle measure by the encoder.
- LCD display for angle and torque.
Technical data
- Maximum torque 200Nm.
- Specimens:
- diameter: 6mm.
- 4x 75mm, brass.
- 4x 75mm, steel.
- 4x 75mm, aluminium.
- 2x 175mm, steel.
- 2x 350mm, steel.
- 2x 700mm, steel.
- 230V, 50Hz, 1 phase.
Dimensions and weight
LxWxH:1200 X 600 X 500
Weight:65 kg
