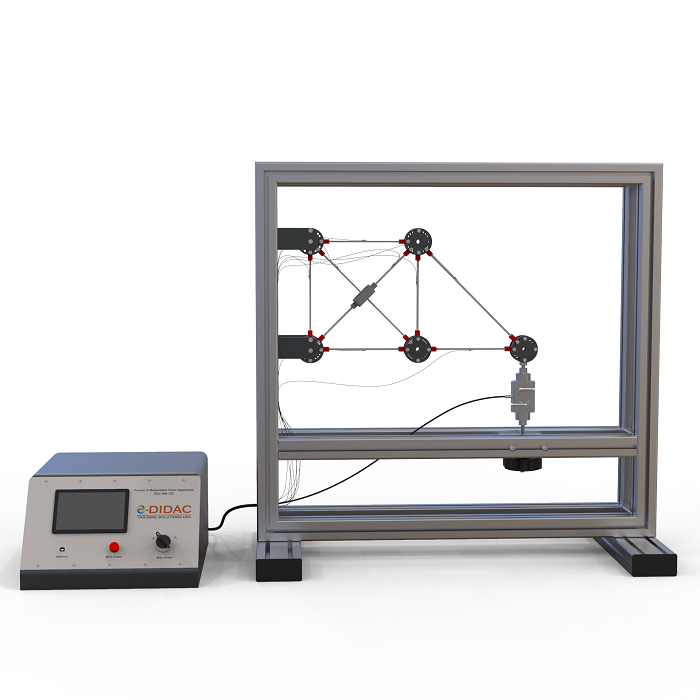

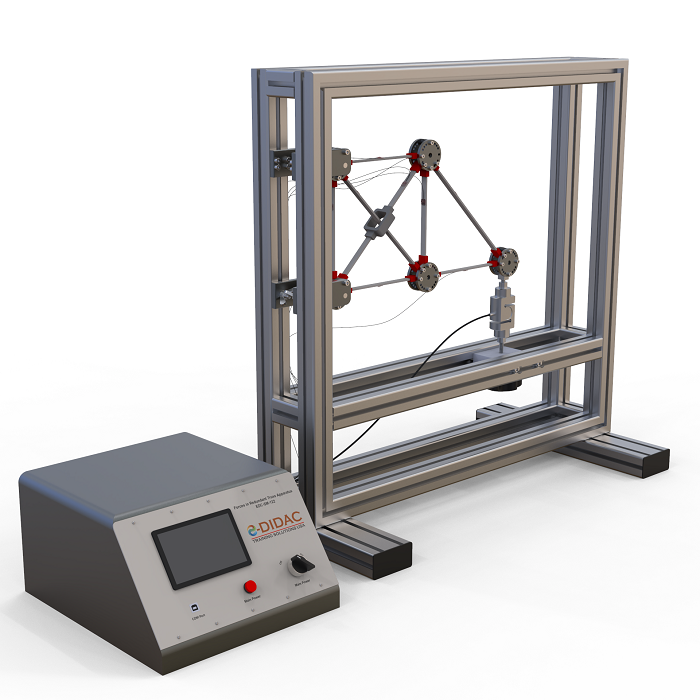

A truss is an assembly of members such as beams, connected by nodes, that creates a rigid structure. In engineering, a truss is a structure that "consists of two-force members only, where the members are organized so that the assemblage as a whole behaves as a single object.
Optional Software is available for Data Acquisition and Control Function.
Specification
- Study of bar forces in statically indeterminate trusses.
- Surplus bar, lengthways adjustable.
- Conventional and tending loading possible.
- Load application device with force gauge mountable on different node disks.
- Measuring point to measure force on each bar.
- LCD display for measurement.
Technical data
- 8 bars with 5 node disks.
- 5 bars fixed with 300mm length.
- 2 bars fixed with 425mm length
- 1 bar adjustable with 400-450mm length.
- Angle between bars is 30, 45, 60, 90.
- Height of truss is 270mm maximum.
- Length of truss is 500mm maximum.
- Loading is of 500N maximum.
- 230V, 50Hz, 1 phase.
Dimensions and weight
LxWxH:1000 X 500 X 600
Weight:35 kg
