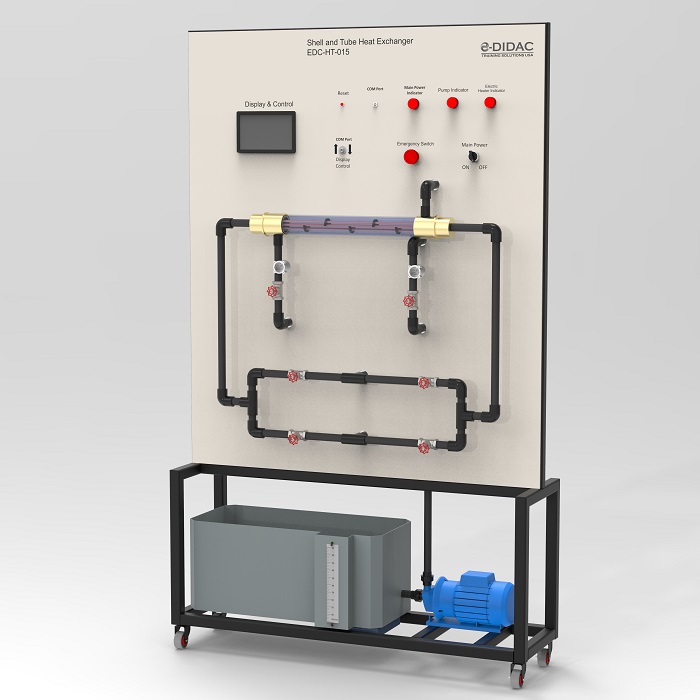

A heat exchanger is a system used to transfer heat between two fluids. Heat exchangers are used in both cooling and heating processes. Shell and Tube Heat Exchanger design has large heat transfer surface with compact design. This type of exchanger mostly uses in chemical and pharmaceutical industries.
Optional Software is available for Data Acquisition and Control Function.
Specification
- Shell and tube heat exchanger.
- Cross parallel flow.
- Cross counter flow.
- Transparent shell.
Technical data
- Manual valve to control the direction of clock and counter clock wise.
- Digital flow and temperature sensors.
- Shell:
- Transparent PMMA.
- Outer dia.: 75mm.
- Tubes bundles:
- No. 7.
- Stainless Steel.
- Storage tank with water pump.
- Pump: 0.37kW.
- Flow max.: 40 LPM
- Heater:
- 1kW.
- Water storage tank capacity 40L.
- LCD Display and control.
- 230V AC 50Hz.
Dimensions and weight
LxWxH:1000 X 400 X 1600
Weight:35 kg
