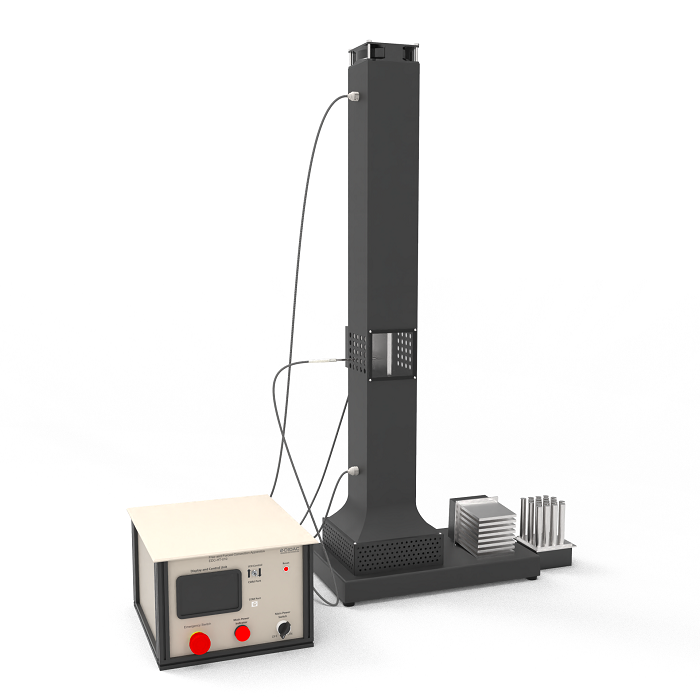

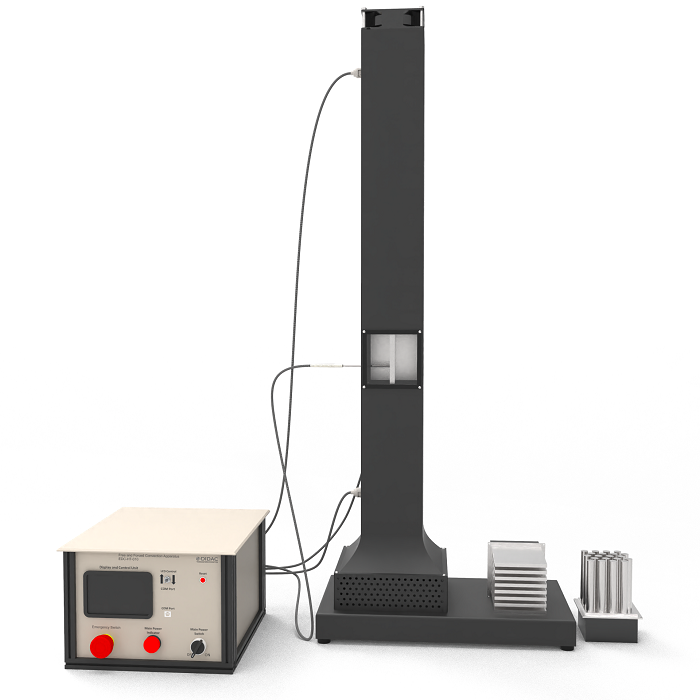

Convection is one of the heat transfer forms. In this apparatus two types of convection occur; one is free and other is forced convection. Apparatus contains a duct, which contains a fan and heater. Different type of heating surfaces is provided with the apparatus.
Optional Software is available for Data Acquisition and Control Function.
Specification
- Study of free and forced convection.
- Air Duct with axial fan.
- Heating Element.
- Heat transfer in Air Duct by forced air.
Technical data
- Air Duct:
- Area:120mm x 120mm.
- Height: 900mm.
- Adjustable Heater:
- 0 to 40W.
- Heating surfaces:
- Tube bundle.
- Finned type.
- Plate type.
- Axial Fan:
- Adjustable speed.
- Max. Power 90W.
- Max. flow 500m3/h.
- LCD display.
- 230V AC 50Hz.
Dimensions and weight
LxWxH:600 X 400 X 1500
Weight:30 kg
