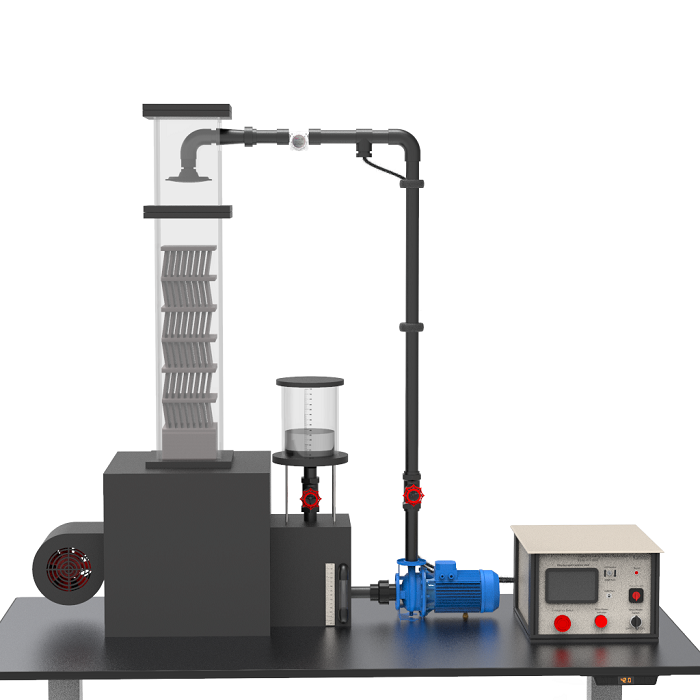

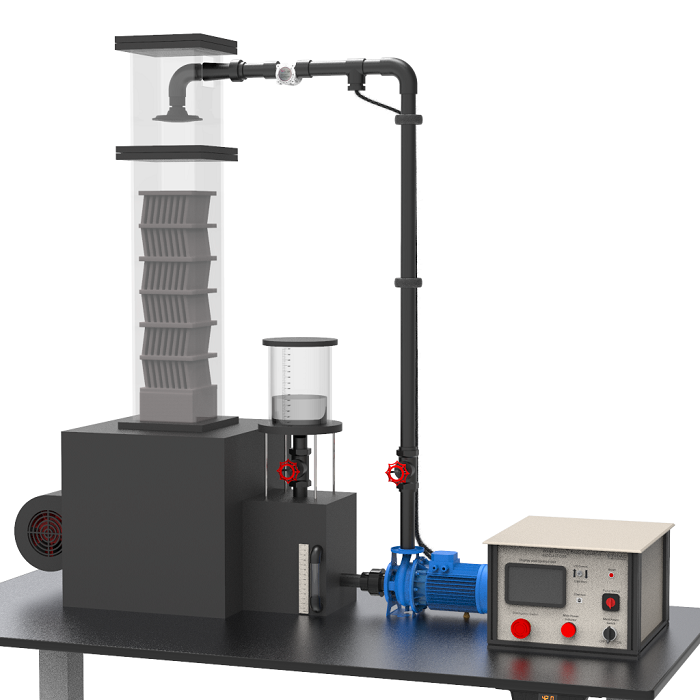

This apparatus is a closed-circuit cooling and heat dissipation method. In this process water is sprayed
over a wet deck surface. Air and water contact directly in counter flow. Cooling process of water occur
by convection method. Some water evaporates and evaporation causes coolness.
Optional Software is available for Data Acquisition and Control Function.
Specification
- Forced ventilation with cooling tower.
- Heater.
- Closed-circuit Cooling Process.
- Digital Display.
- Manual valve for flow control.
Technical data
- Cooling Column:
- 150 x 150mm.
- specific surface of the wet deck
surface: 110m2/m3.
- Heater adjustable:
- 0 to 1500W.
- Air flow Adjustable:
- power consumption: 220W.
- max. pressure difference: 4mbar.
- max. volumetric flow rate:
13m3/min.
- Built-in pump for water flow:
- Max. 6 LPM.
- Additional water tank: 3 Ltr.
- LCD display for temperature and flow.
- 230V AC 50 Hz.
Dimensions and weight
LxWxH:1100 X 500 X 1200
Weight:60 kg
