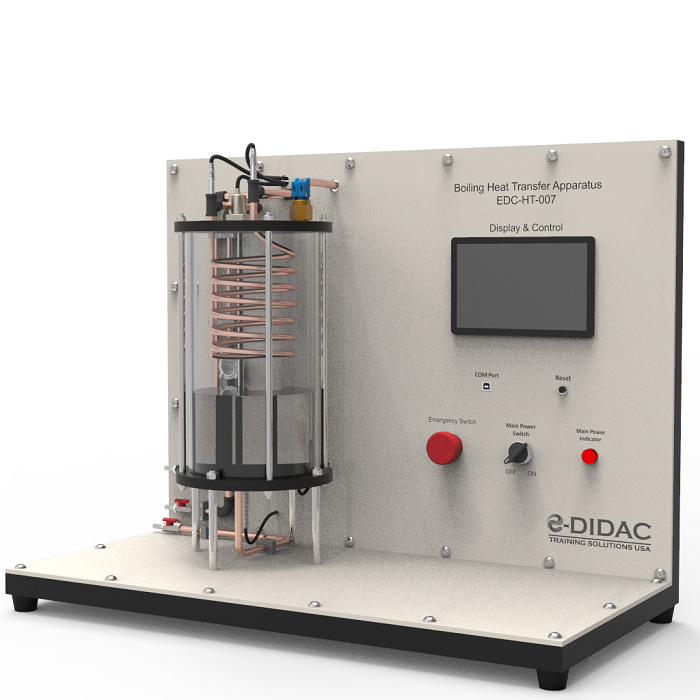

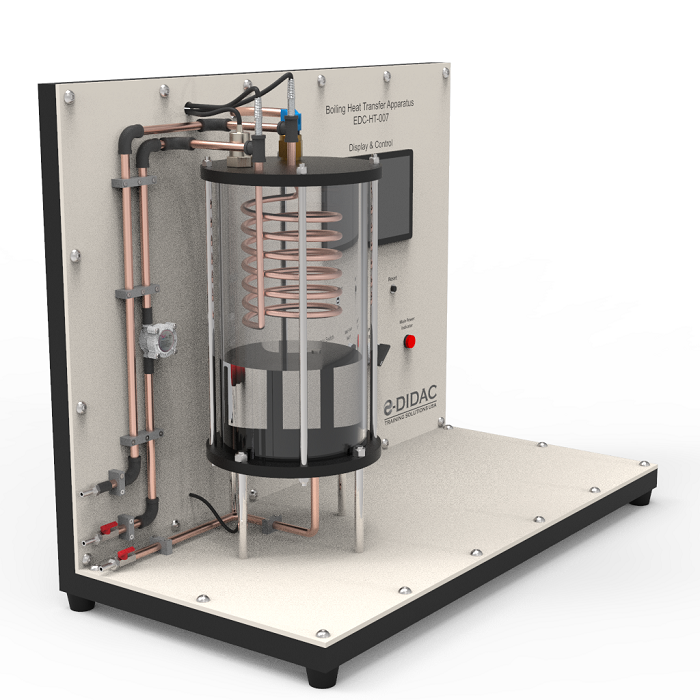

The apparatus contains a transparent cylinder with refrigerant in it. An adjustable heating power heater
using LCD increases the temperature of refrigerant, due to that boiling start and refrigerant increase
pressure in cylinder. Transparent cylinder also contains a coil with water circulation for cooling of
refrigerant.
Optional Software is available for Data Acquisition and Control Function.
Specification
- Boiling and Evaporation process in
transparent tank.
- Evaporation using heater.
- Condensation process using tube coil.
- LCD display for temperature, flow and
pressure.
Technical data
- Heater Adjustable:
- Max. 0W to 300W.
- Temperature sensor:
- Up-to 150o C.
- Flow Sensor:
- 0 to 5 LPM.
- Condenser cooled tube:
- Material: Copper.
- Transparent Tank:
- PMMA Material.
- 3 Ltr.
- Refrigerant:
- 1.2kg.
- 230V AC 50 Hz.
Dimensions and weight
LxWxH:1000 X 550 X 700
Weight:60 kg
