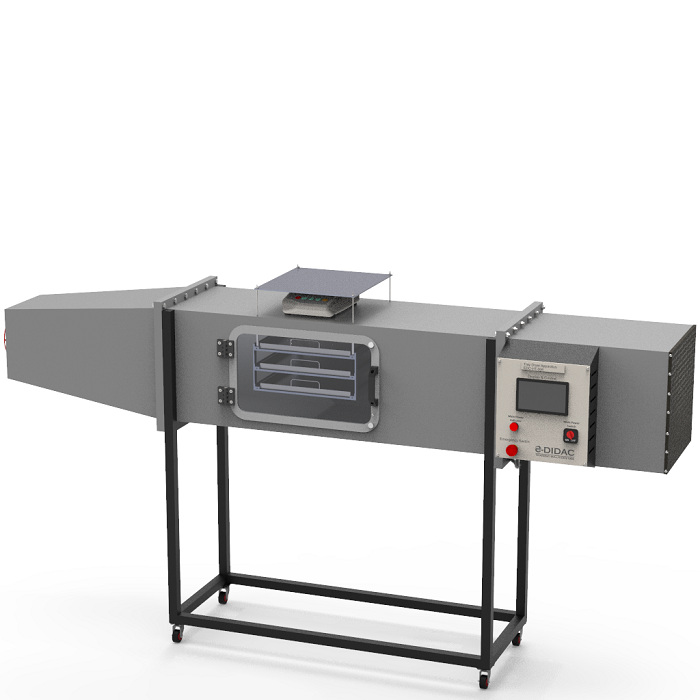

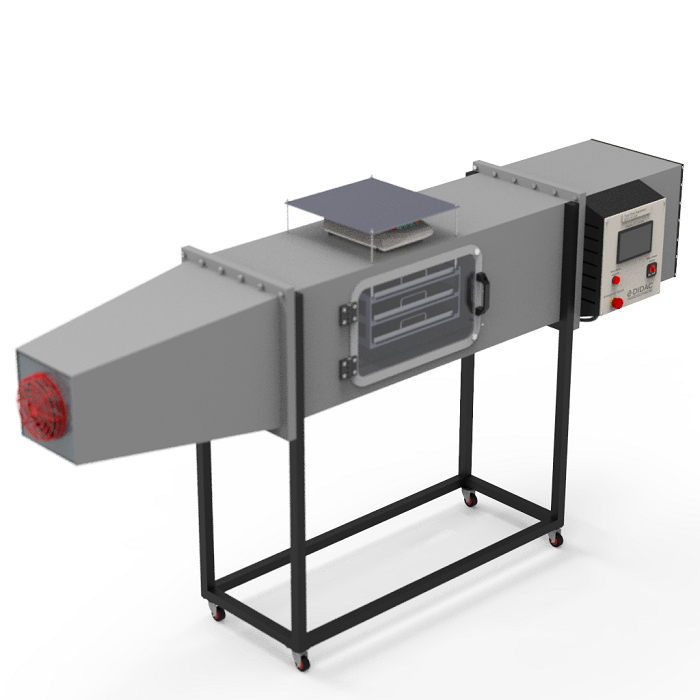

The apparatus contains a convection process of drying the material using variable air flow method. It
contains a duct system with heater and forced air process. LCD control panel is installed with the system
to control air speed and display the temperature. Portable weighing unit for measuring the change in the
weight of material.
Specification
- Convection drying process.
- Corrosion resistance plates.
- Air adjustable velocity.
- Controlled heating process.
- Humidity and temperature measuring.
Technical data
- Drying Channel:
- Length 2400mm.
- Dimension 350 x 350mm.
- Fan with variable speed:
- power: 50W.
- max. output: 650m3/h.
- max. speed: 850min-1.
- Heater with variable heating power:
- 0 to 6400 W.
- Portable weighing scale:
- 0 to 30kg.
- 0.1g resolution.
Dimensions and weight
LxWxH:2400 X 600 X 1200
Weight:105 kg
