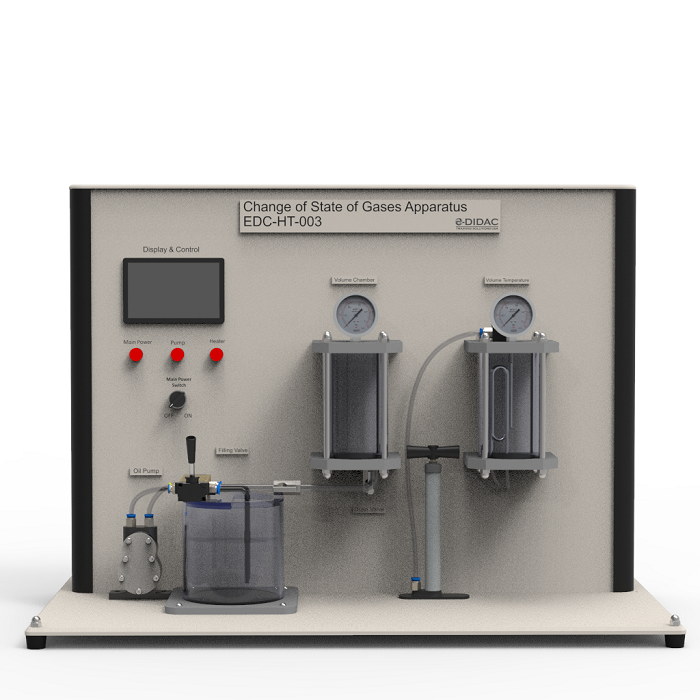

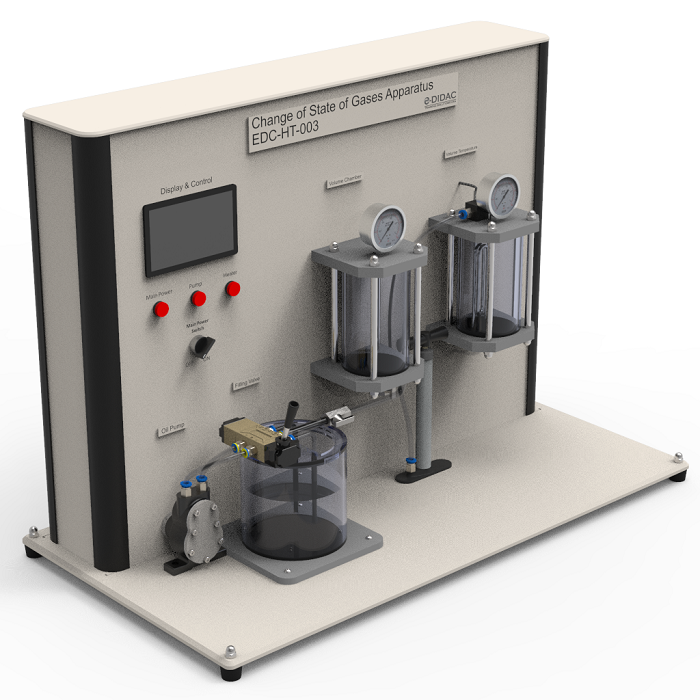

Two transparent tanks are present to observe the Boyle’s-Mariotte and Gay-Lussac’s law. Gas laws belong
to the fundamentals of thermodynamics. The apparatus allows two laws of gases to be studied
experimentally: isothermal change of state, identified as the Boyle-Mariotte law, and isochoric change of
state identified as Gay-Lussac’s Law.
Specification
- Transparent measuring tank for investigation of Boyle’s law.
- Transparent measuring tank for investigation of Gay-Lussac’s law.
- Built-in hand operated air pump.
- Electrical heater.
- Oil pump.
Technical data
- Pump to deliver oil to tank.
- Two Transparent cylinder:
- Material PMMA.
- Height 200mm.
- Diameter 150mm.
- Pressure Gauges Range:
- 0 to 4 bar max.
- Hand operated air compressor.
- Pressure gauges for measurement.
- Temperature sensor.
- LCD display and Control
- 230V AC 50Hz.
Dimensions and weight
LxWxH:800 X 500 X 700
Weight:40 kg
