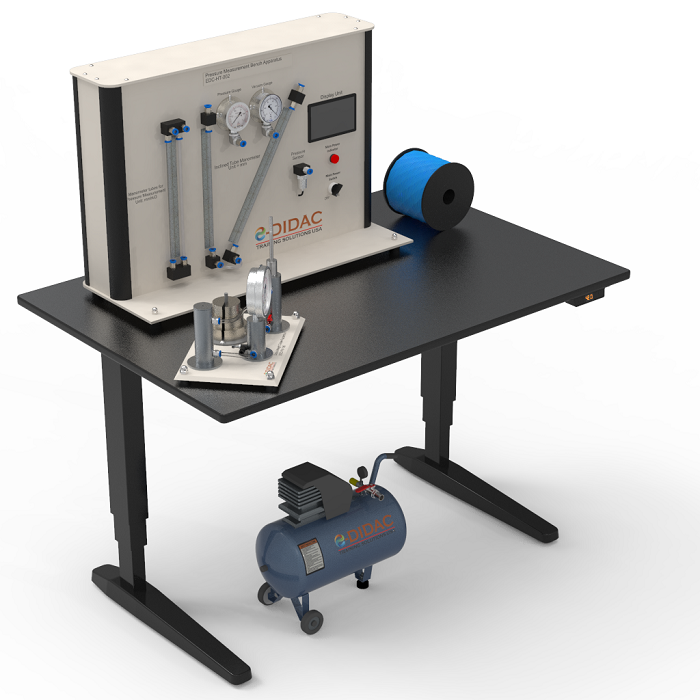

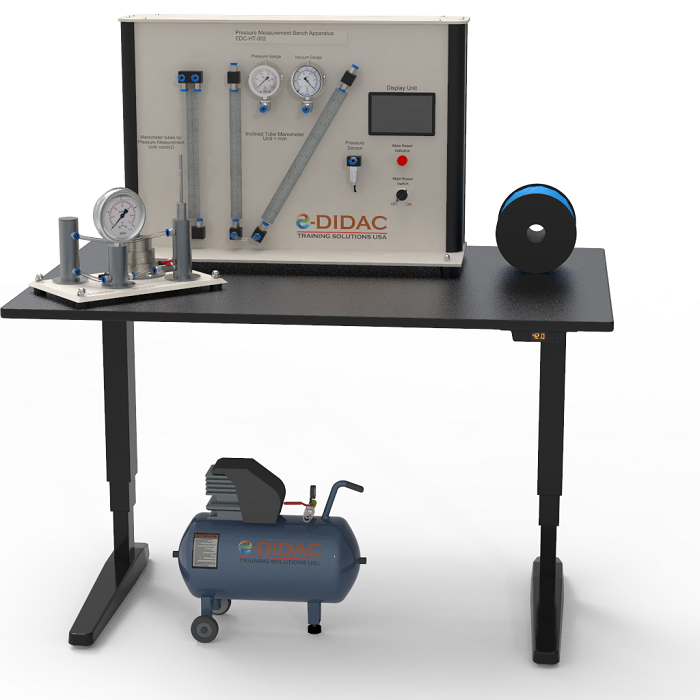

Pressure Measurement Bench (EDC-HT-002)

Pressure Measurement Bench permits students to examine measurement of the fundamental parameters that are present in every branch of engineering and physics. Apparatus contains U-tube Manometer, Inclined Tube Manometer, Pressure and Vacuum Gauge, pressure sensor with digital indicator, Dead Weight Tester and Compressor (optional).

Specification

U-tube Manometer.
Inclined Tube Manometer.
Pressure Gauge.
Vacuum Gauge.
Pressure sensor.

Technical data

Dead Weight Tester Experiment with Pressure gauge.
0 to 2.5 bar.
Transparent tubes of U-tube and Inclined
Tube Manometer:
Height:450mm.
Pressure Gauge:
0 to 2.5 bar.
Vacuum Gauge:
-1 to 1 bar.
Pressure Sensor Digital:
-1 to 3 bar.
LCD Display for digital pressure sensor.
230V AC 50Hz.

Dimensions and weight

LxWxH:600 X 400 X 600 Weight:40 kg

Precision and determination between U-Tube and Inclined Tube Manometer.
Study of Manometer Pressure Measurement Methods.
Study of Pressures Overhead and Under Atmospheric Pressure.

1 x EDC-HT-002.
1 x Instructional Manual.
