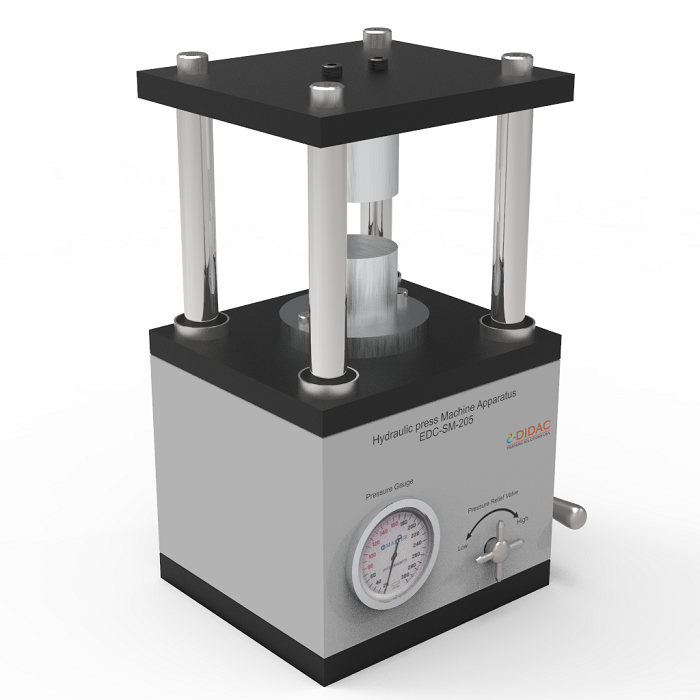

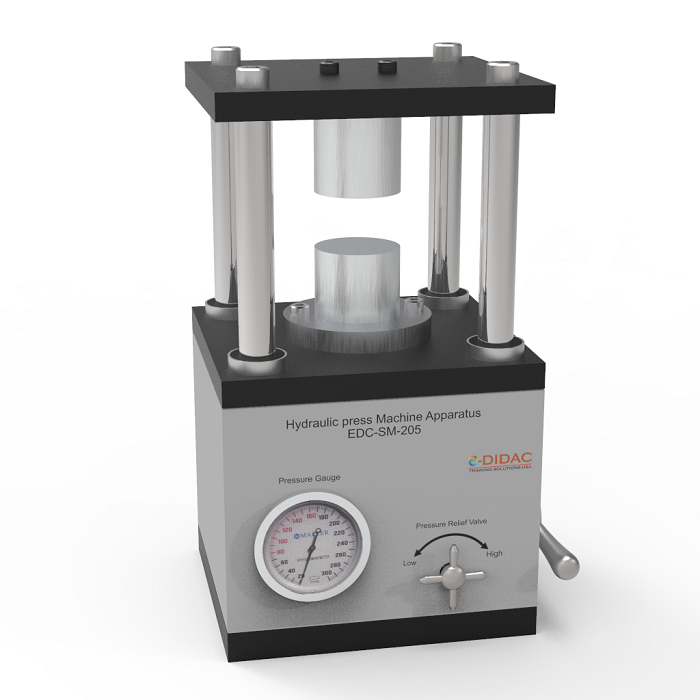

This Hydraulic press machine is a desktop manual pressing machine for materials / chemistry research
laboratories to prepare compound ceramic sample. This machine has high strength steel strong body and
structure and can be used for coin cell/button battery electrode lab press. It has built in pressure meter
for observing and can be accurately control the size of pressure.
Specification
Data Not Found .......
Technical data
- Press die size: Diameter 68mm, customized
Press stroke: 30mm.
- Advantages: By using aluminum alloy and high
strength steel, surface after the environmental
protection electroplating processing will never
rust.
- Using high quality imported mold material
Rocker Pressure: < 6kg.
- Max Pressure: 200kg/cm2 (The hydraulic drive
pressure up to 8T, the battery sealing no
vibration, no leakage).
- Working Pressure: 80-100kg/cm2.
Dimensions and weight
LxWxH:300*300*400
Weight:70 kg
