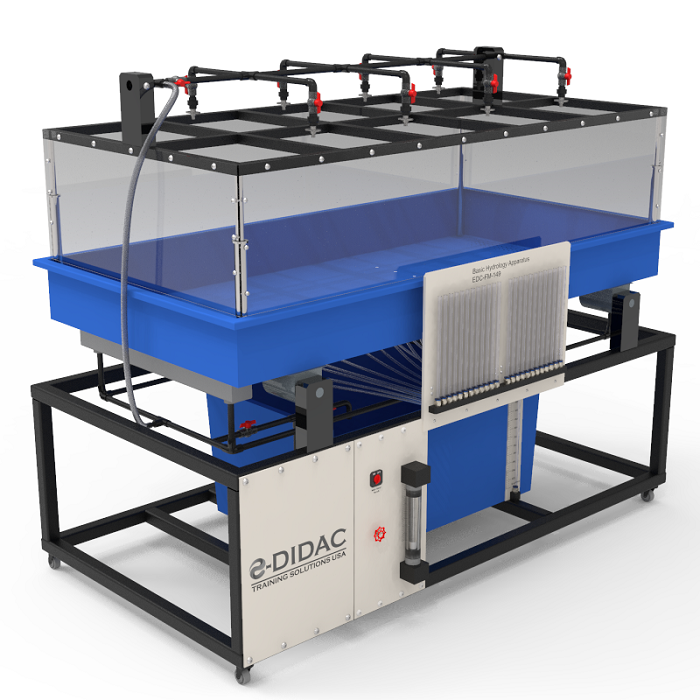

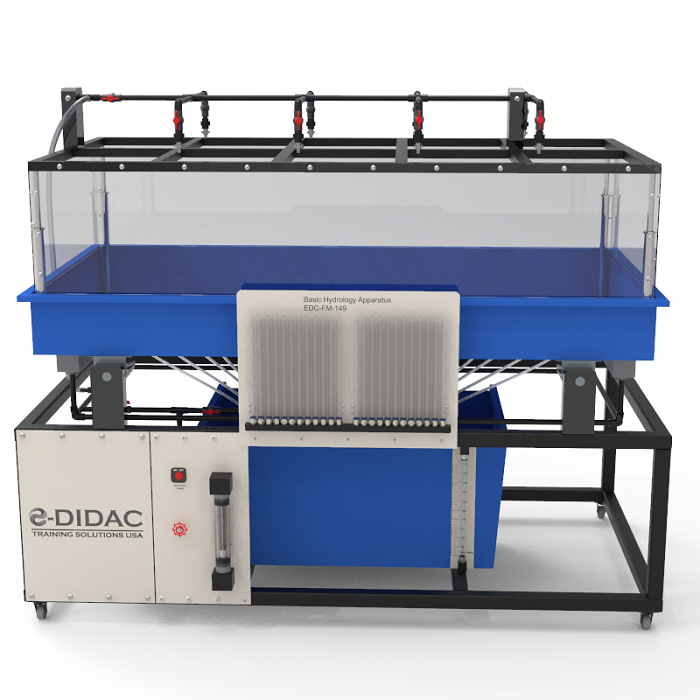

Apparatus EDC-FM-149 used for learning of seepage and groundwater flows. It contains a closed water
circuit with pump and flow control valve with rotameter for the measurement of flow at inlet. The central
element is a sand-filled, stainless steel experiment tank with inclination adjustment. To study rainfall,
piping is on the top for artificial rain with control valves to operate manually on different area of the
experimental bed.
Specification
- Inclinable stainless steel experiment tank.
- Experimental tank contains 19 measuring
connections to detect groundwater levels and
screens for separating the chambers.
- Wells with open seam tubes in the experiment
tank.
- Rainfall device with different nozzles that are
adjustable.
- Water supplies and drains can be selected
separately.
- Instruments: Tube manometers for
groundwater and flow meter for water supply.
- Investigation of rain-discharge relationships.
- Storage capacity of soils.
- Seepage flows and groundwater flows.
Technical data
- Testing tank: area 2 m x 1m, 0.2m depth.
- Rainfall device with nozzles: Qty 8.
- Flow rate adjustable using valve.
- Pump for water supply: 25 LPM.
- Storage tank for water: 220L.
- 230V, 50Hz, 1 phase.
Dimensions and weight
LxWxH:2450X 1150 X 1850
Weight:295 kg
