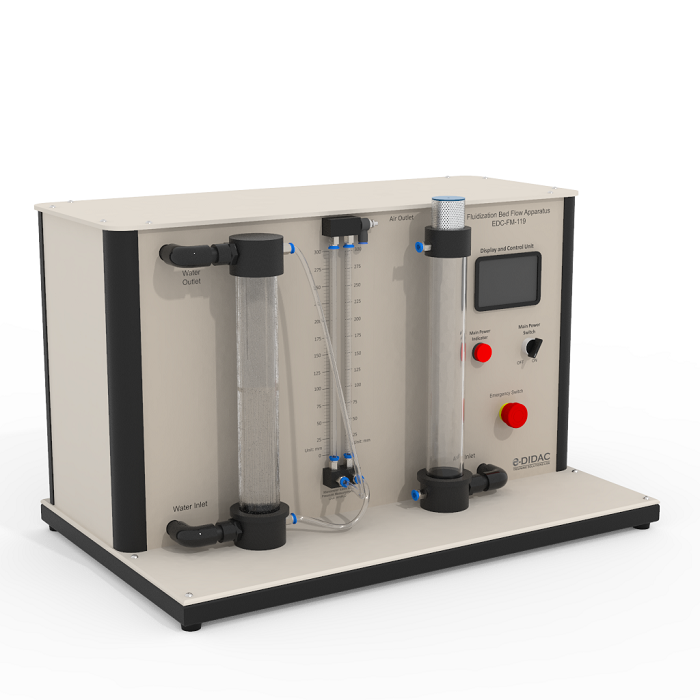

Fluidization is a process similar to liquefaction whereby a granular material is converted from a static
solid-like state to a dynamic fluid-like state. This process occurs when a fluid is passed up through the
granular material.
Specification
- Study of the transformation from fixed bed to
fluidized bed.
- Tanks: Removeable and with scale for
measurement.
- Water supply using storage tank.
- Compressed air supply via compressed air
accumulator.
- Air adjustable valve.
- Flow rate adjustable.
- Measurement of pressure loss using
manometer.
Technical data
- Tanks: 2 Qty, 3 Ltr each.
- Manometer: 300mm.
- Pump for water circulation:6LPM.
- Compressor for air.
- Electric Supply: 230V AC 50Hz, 1 phase.
Dimensions and weight
LxWxH:700 X 500 X 1000
Weight:75 kg
