Sedimentation is a physical water treatment process using gravity to remove suspended solids from water.
Solid particles entrained by the turbulence of moving water may be removed naturally by sedimentation

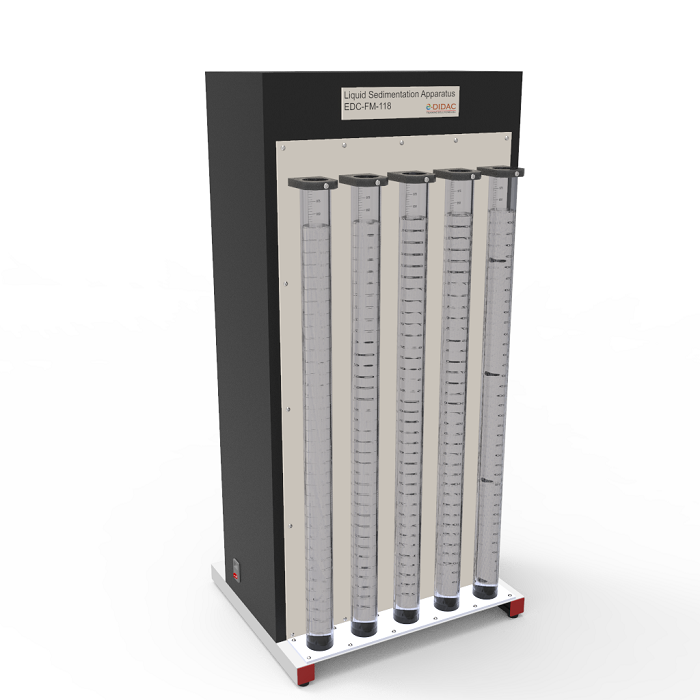

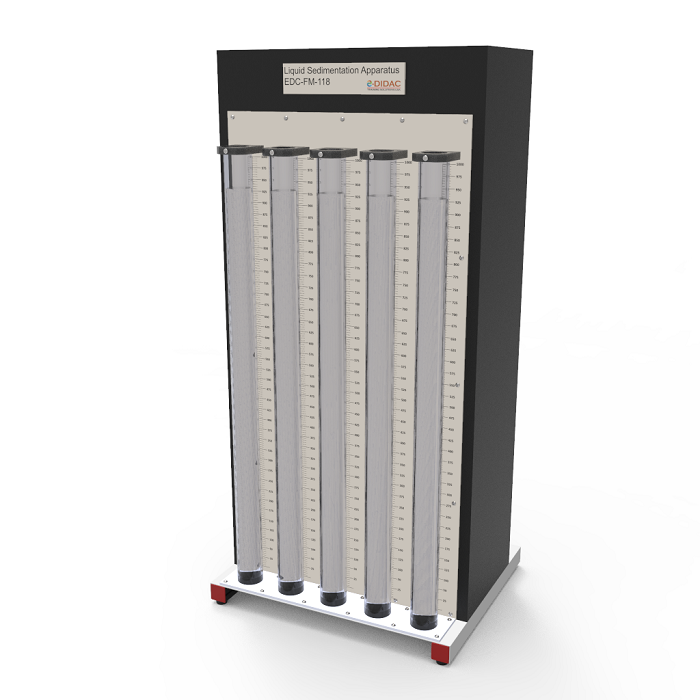

in the still water of lakes and oceans. Apparatus contains 5 transparent cylinders for investigated and
comparison of sedimentation processes in different suspensions.
Specification
- 5 transparent tanks with scale.
- Tanks are removable for filling, mixing and
cleaning.
- Tanks backlit by fluorescent tubes to aid
observation.
- Stopwatch to record the sedimentation time.
- Recommended accessories: balance, coagulant.
Technical data
- Transparent Tanks: H:1000mm, D:50mm
- Fluorescent tubes.
- Measuring cups.
- Stopwatch.
- 230V, 50Hz, 1 phase.
Dimensions and weight
LxWxH:750 X 500 X 1200
Weight:35 kg
